K50CABT2XGH Banner Pick-to-Light Sensors

K50CABT2XGH on Powermatic Associates
Banner

Part#:K50CABT2XGH

Manufacturer:Banner

Alt. Part#:807804

Product Lifecycle:Active

Get a quick Quote!

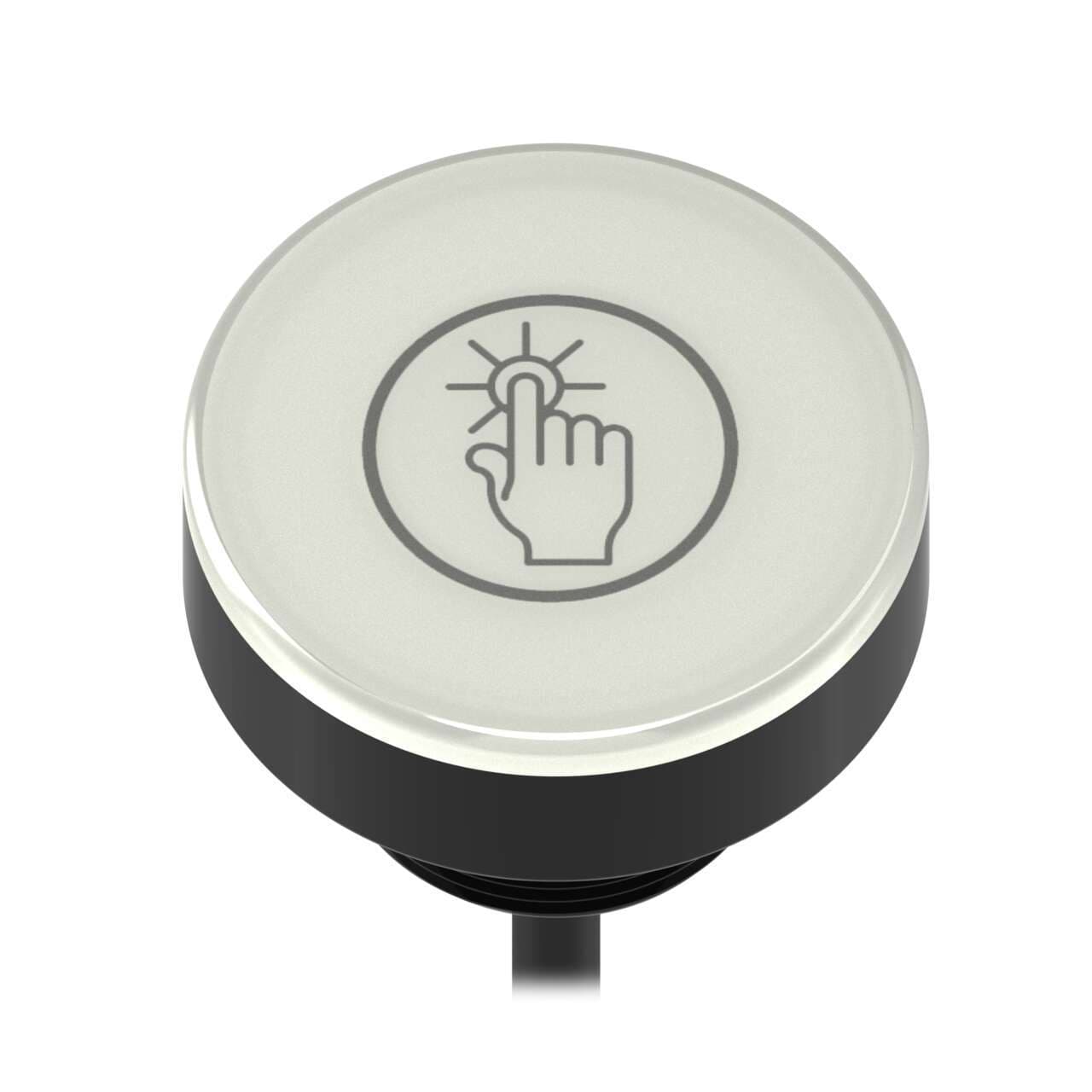

K50 Compact Series: 1-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Color: None - Not Activated, Green - Activated; 2 m (6.5 ft) PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50CABT2XGH Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Washdown Rated
    Yes
  • Button Operation
    Momentary
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Storage Temp (°C)
    -40 to 70
  • Primary Housing Color
    Black
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 48.0
  • Max Output Response Time (ms)
    50
  • Supply Voltage
    12-30 V dc
  • I/O Block Compatible
    Yes
  • Input Type
    PNP
  • Output Type
    Bipolar (NPN & PNP)
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    5
  • Pick-to-Light Function
    H
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Acknowledge (Sense) Light
    Green
  • Color Option 2
    Green
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Connection
    Cable
  • Max Current Color (mA)
    75
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 2
    29.0
  • Power Source
    DC
  • Primary Housing Material
    Polycarbonate
  • Activation Function
    Capacitive Touch
  • Mounting Thread
    M30 x 1.5
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Actuation
    Yes
  • Power
    DC
  • Housing Style
    Base Mount - Flat Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50CABT2XGH Description

Banner Engineering K50CABT2XGH is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series, featuring a flat-top Gen.2 design with 2-color LED illumination that displays green when not activated and white when activated. The unit has a black housing with a flat window shape, constructed from polycarbonate for both the diffused window and the base. It is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. This touch-button operates within a supply voltage range of 12Vdc to 30Vdc, with a nominal 24Vdc, and can be mounted via surface or base pole with an M30 thread. The button diameter is 50mm, and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with ratings of IP67 and IP69K, ensuring durability in harsh environments. The operating mode is a momentary normally open (NO) touch output, with a current consumption of 75mA. Additionally, it features 2 x digital inputs for color control and 1 x digital output for touch, both supporting 12-30Vdc and PNP/NPN.

Related documents K50CABT2XGH Specs

K50CABT2XGH 189829.pdf
