EZLSA-HTE-R23-1050 Banner Safety Light Curtains
Part#:EZLSA-HTE-R23-1050
Alt. Part#:803832
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description

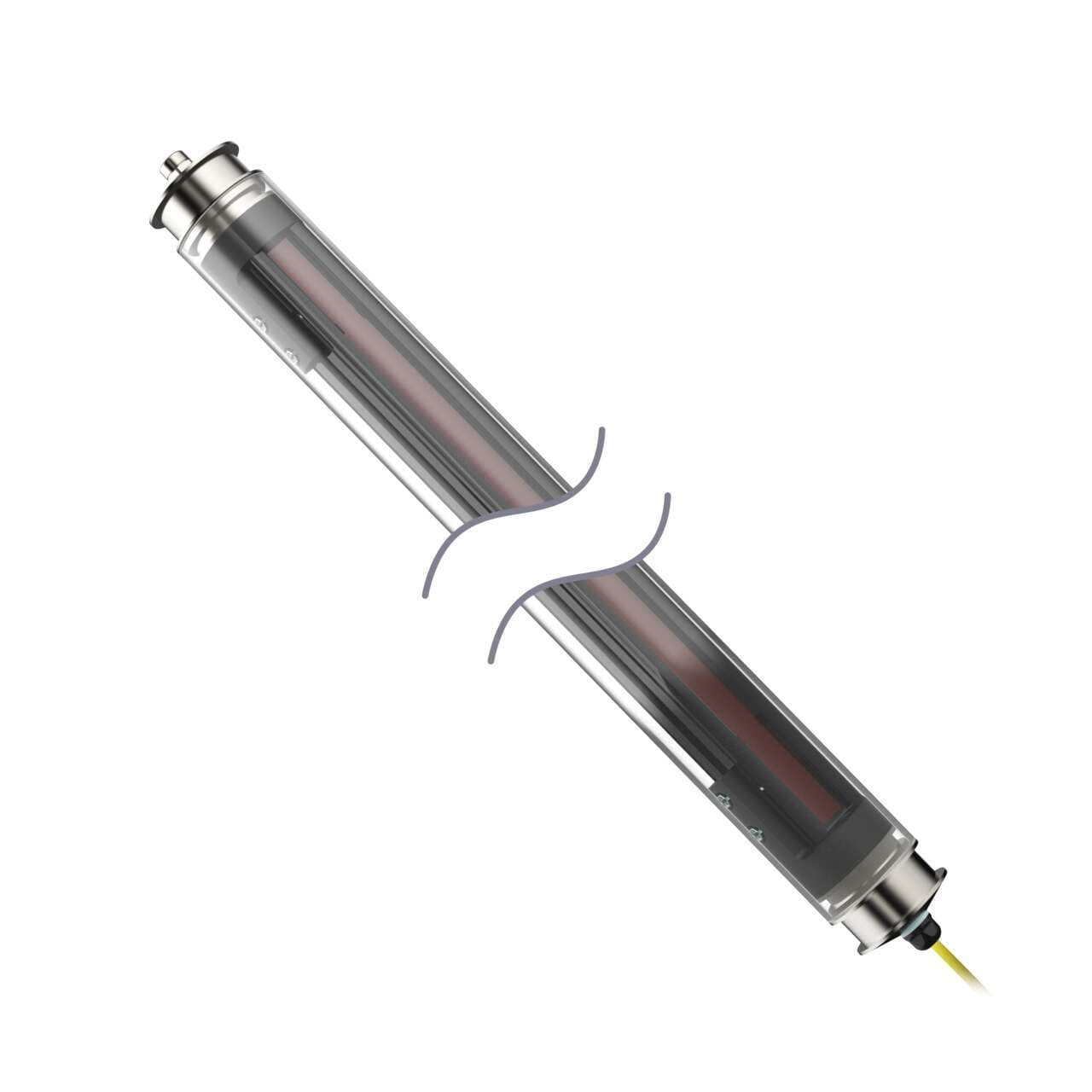

EZ-SCREEN LS; Receiver; 1050 mm; Resolution: 23 mm; Range: 8.4 m (27 ft); Defined Area: 1050 mm (41.5 in); Housing: Black; LS Custom Connector to 8-wire Flying Leads; in Hygienic Tubular Enclosure
Product Details
- Weight 6715.42956 g
- Country Of Origin US
- Supply Current 110 mA Typical
- Feature: Integral Muting No
- IP Rating IP65; IP67; IP69
- Feature: ESD Safe No
- Feature: End-to-End Sensing No
- Feature: Washdown Rated Yes
- Trip/Latch Output Trip
- Test Input No
- Housing Material FDA-grade Polycarbonate, Stainless Steel
- Fault Output Yes
- OSSD Rating 24 V dc at 0.5 A each
- Auxiliary Output No
- Vibration 10-55 Hz at 0.35 mm
- Reduced Resolution No
- System Type Emitter
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- SIL Rating SIL3; CL3
- Scan Code Selectable
- Electrical Safety Class III
- Recovery Time 74 / 249
- Resolution (mm) 23
- Operating Distance (m) 0.1 - 8.4
- PL Rating Ple
- Operating Temperature -20 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- Housing Finish Yellow Polyester
- Number of Pins (Receiver/Emitter) 8
- Safety Level Type 4
- Effective Aperture Angle Type 4 Per IEC 61496-2
- External Monitoring Device 1 Channel
- Overall Length (mm) 1211
- Fixed Blanking No
- Primary Housing Material FDA Polycarbonate
- Connector Type 7.6 m Cable with Flying Leads
- Dimensions WxD (mm) Φ 63.5
- Defined Area Height (mm) 1050
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZLSA-HTE-R23-1050 on Powermatic Associates is $2,245.00. Order now.
About the product
Banner Engineering EZLSA-HTE-R23-1050 is a safety light curtain designed for hand detection with a resolution of 23mm and a protective height of 1050mm. It operates within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP65, IP67, and IP69K, suitable for environments requiring high levels of hygiene. The housing is made from FDA-approved hygienic polycarbonate (PC) with stainless steel end caps and a PVC cable. This part of the LS series type 4 safety light curtain features infrared (IR) light color and has a response time of 17.5ms. It includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and is capable of sensing distances from 10cm to 8.4m. The device is pre-wired with a 25ft cable that terminates with bare end flying leads, operates on a 24Vdc supply voltage, and has a cable diameter of 63.5mm. The housing is yellow, and the beam spacing/pitch is 23mm, with a net height of 1211 mm.
