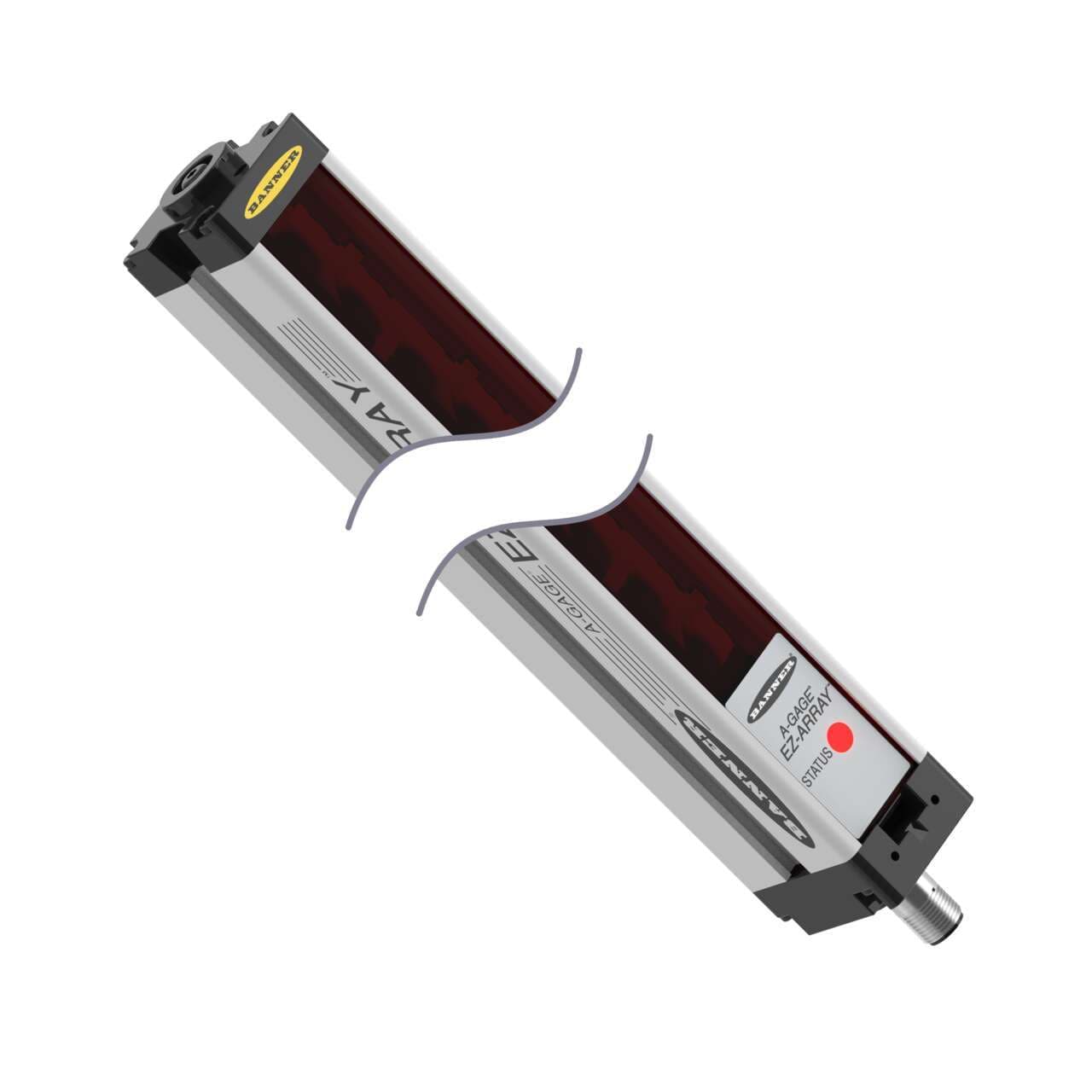

EA5E600Q Banner Measurement Sensors
Part#:EA5E600Q
Alt. Part#:75426
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
EA5E600Q A-GAGE EZ-ARRAY Emitter; Range: 4 m; Input: 12-30 V dc; 8-pin M12 QD
Product Details
- Weight 2267.96 g
- Country Of Origin MX
- Power Supply 12-30V dc
- Max Relative Humidity 95%
- Emitter/Receiver Range (m) 0.4 - 4
- Max Temp (°C) 70
- Discrete Output N/A
- Minimum Object Sensitivity (mm) 5-10
- Array Length (mm) 600
- Housing Length (mm) 678
- RS-485 No
- Min Temp (°C) -40
- Number of Beams 120
- Analog Output N/A
- Modbus RTU No
- RS-232 No
- IO Link No
- DeviceNet No
- Primary Housing Material Aluminum
- Beam Spacing 5 mm
- Sensing Mode (Detailed) Emitter
- Device Type Two-Piece
- Power DC
- Primary brand Banner Engineering
- Functions Measuring light curtain array emitter red LED (status)
- Material Aluminium housing
- Compliant with standard(s) cULus CE
- Distance 120 beams / 5mm beam spacing/pitch
- Resolution 5mm
- Dimensions 600mm array length
- Sub-range name EZ-ARRAY
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Degree of protection IP65
- Product series / family name A-GAGE series
- Light Color Infrared (IR)
- Main function Sensor (Edge)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Order code / Manufacturer SKU 75426
- Ambient air temperature for operation -40...+70 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5E600Q on Powermatic Associates is $1,258.00. Order now.
About the product
Banner Engineering EA5E600Q is a sensor (Edge) from the EZ-ARRAY series, featuring a measuring light curtain array functioning as an emitter alone. It is constructed with an aluminium housing and designed to operate within an ambient air temperature range of -40 to +70°C. This sensor offers a degree of protection rated at IP65, ensuring its suitability for various environments. The EA5E600Q has dimensions of a 600mm array length, with a rectangular shape and utilizes infrared (IR) light color for its operation. It boasts a resolution of 5mm, with 120 beams and a 5mm beam spacing/pitch. The device is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal.
