EA5E1500Q Banner Measurement Sensors
Part#:EA5E1500Q
Alt. Part#:75431
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description

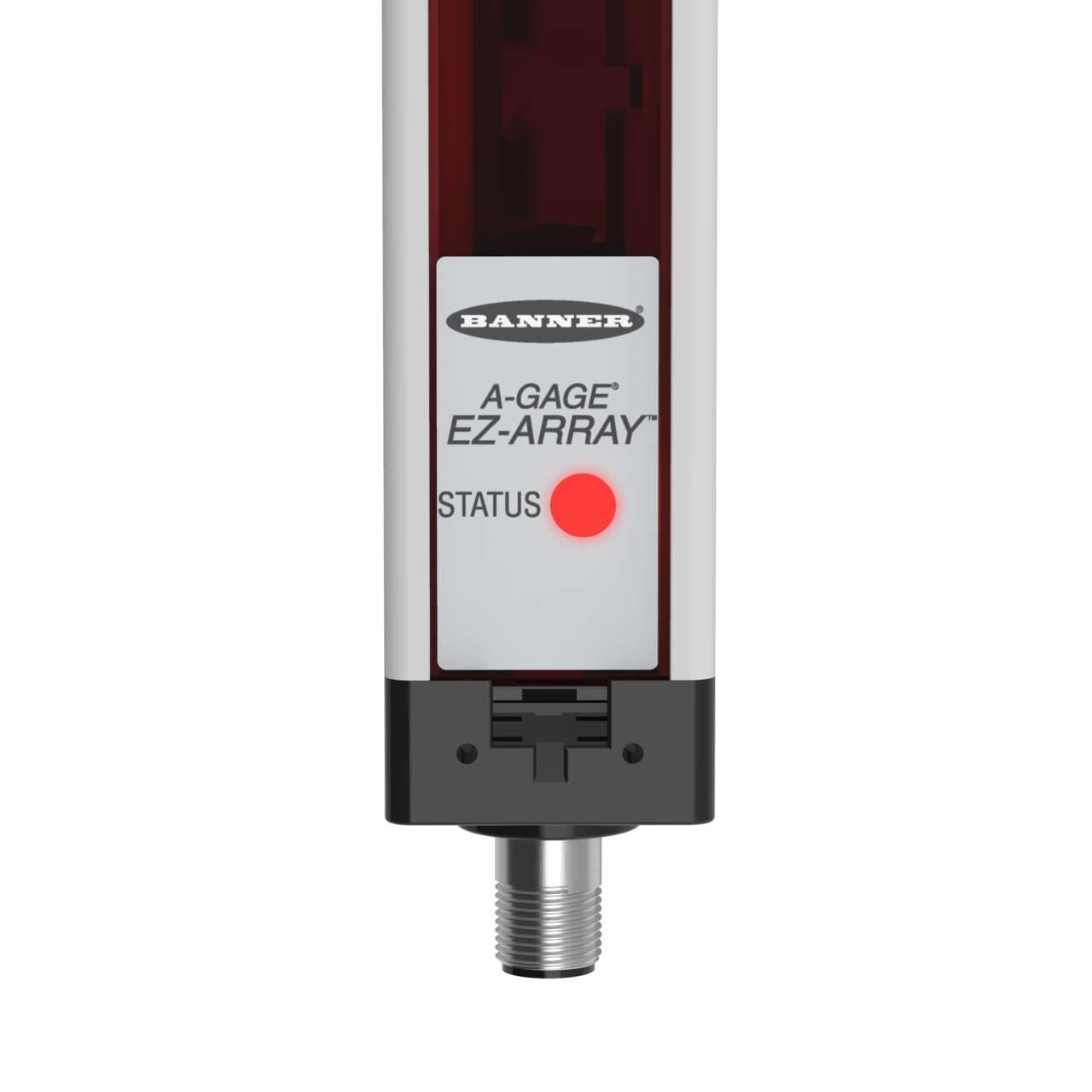

EA5E1500Q EZ-ARRAY 5 mm OPTICAL SPACING x 1500 mm EMITTER
Product Details
- Weight 4635.71024 g
- Country Of Origin MX
- Max Relative Humidity 95%
- Emitter/Receiver Range (m) 0.4 - 4
- Power Supply 12-30V dc
- Minimum Object Sensitivity (mm) 5-10
- Discrete Output N/A
- Max Temp (°C) 70
- Number of Beams 300
- Housing Length (mm) 1578
- Array Length (mm) 1500
- Min Temp (°C) -40
- Analog Output N/A
- RS-485 No
- RS-232 No
- Modbus RTU No
- DeviceNet No
- IO Link No
- Sensing Mode (Detailed) Emitter
- Primary Housing Material Aluminum
- Beam Spacing 5 mm
- Device Type Two-Piece
- Power DC
- Sub-range name EZ-ARRAY
- Primary brand Banner Engineering
- Light Color Infrared (IR)
- Dimensions 1500mm array length
- Compliant with standard(s) cULus CE
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Ambient air temperature for operation -40...+70 °C
- Product series / family name A-GAGE series
- Functions Measuring light curtain array emitter red LED (status)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Main function Sensor (Edge)
- Distance 300 beams / 5mm beam spacing/pitch
- Degree of protection IP65
- Order code / Manufacturer SKU 75431
- Resolution 5mm
- Material Aluminium housing
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5E1500Q on Powermatic Associates is $2,307.00. Order now.
About the product
Banner Engineering EA5E1500Q is a sensor (Edge) from the EZ-ARRAY series, featuring an aluminium housing and designed for measuring light curtain array functions as an emitter alone. It operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65. This sensor has dimensions of a 1500mm array length, utilizes infrared (IR) light color, and is shaped rectangularly. With a resolution of 5mm, it comprises 300 beams with a 5mm beam spacing/pitch. The EA5E1500Q is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and supports a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc.
