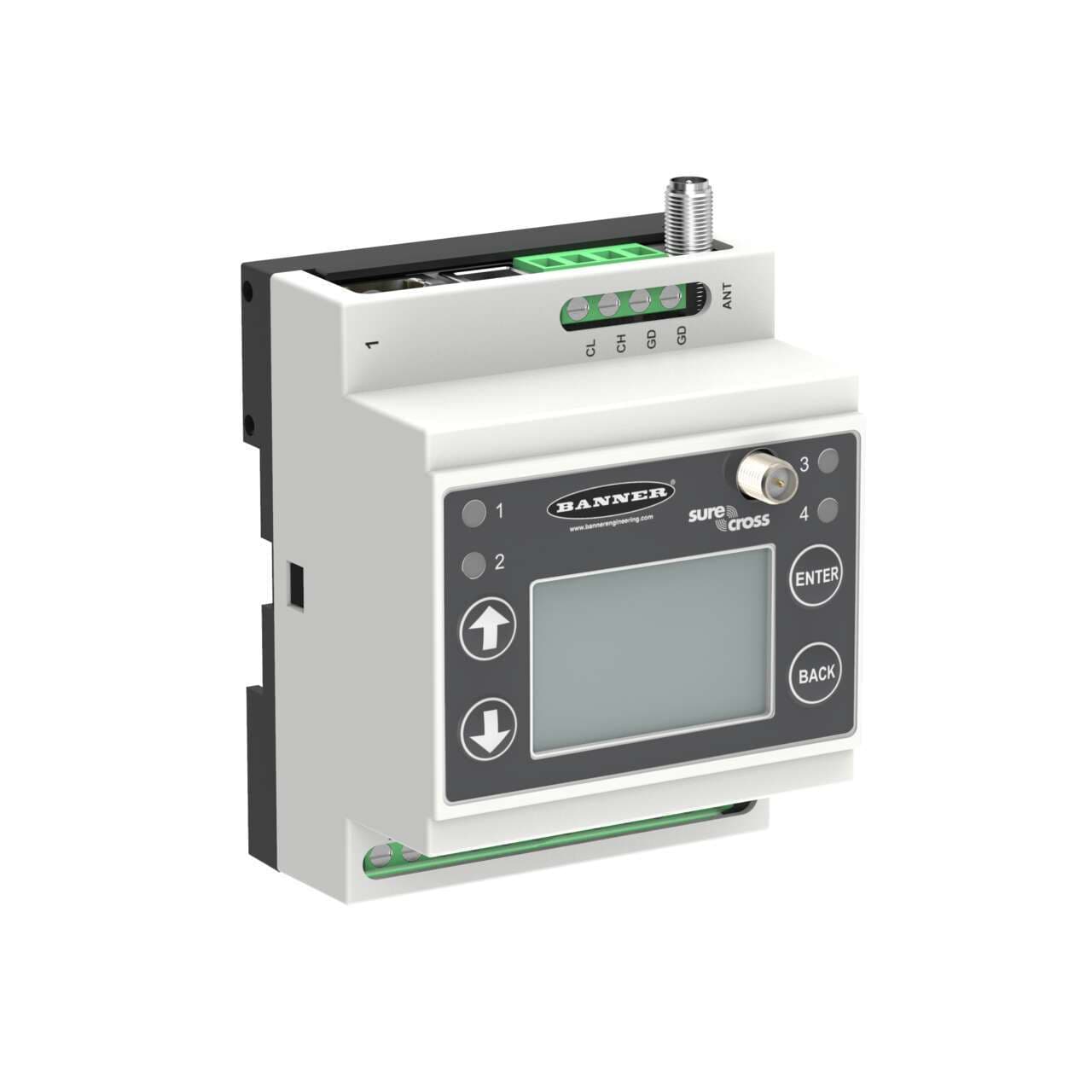

DXM700-B1R2 Banner I/O Modules

DXM700-B1R2 on Powermatic Associates
Banner
  • DXM700-B1R2
  • DXM700-B1R2

Part#:DXM700-B1R2

Alt. Part#:806247

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM700 Controller; Multihop Radio 900 MHz 1 W; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    900 MHz
  • 1-wire Serial Interface
    No
  • Modbus/TCP
    Yes
  • EtherNet/IP
    Yes
  • Modbus RTU
    Yes
  • RS-485
    Yes
  • Wireless
    Yes
  • PROFINET
    Yes
  • RS-232
    No
  • Application: Indicator Light
    Yes
  • Application: Pick-to-Light
    Yes
  • Feature: Hazardous Area
    No
  • Dimension Length (mm)
    70
  • Processing Speed (MHz)
    300
  • On-Board Memory (MB)
    16
  • Tree Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Star Topology
    Yes
  • Relative Humidity
    95%
  • Power Supply
    12-30 V dc
  • Max Temp Operating Conditions
    60
  • Output Details
    4 PNP
  • Environmental Rating (IP)
    IP20
  • Min Temp Operating Conditions
    -20
  • LCD Display
    Yes
  • Discrete Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Housing Style
    External Terminals
  • Device Type
    Wireless Controller with MultiHop Radio
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM700-B1R2 on Powermatic Associates is $774.00. Order now.

About the product

Banner Engineering DXM700-B1R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The dimensions of this part are H58.1mm x W70mm x D94.5mm. It features 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and utilizes a 900 MHz transmission frequency. As a Modbus I/O controller within the DXM700-B1 series, it incorporates a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, employing FHSS (Frequency Hopping Spread Spectrum) technology with an M7 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is provided by 16MB of on-board memory and an 8GB SD card. The frequency operates on the 900MHz ISM band with a 1W radio (HE5 MultiHop data radio; North America), capable of a maximum transmission distance of 9.6km at nominal emission power.
