DXM700-B1R1 Banner I/O Modules

DXM700-B1R1 on Powermatic Associates
Banner
  • DXM700-B1R1
  • DXM700-B1R1

Part#:DXM700-B1R1

Alt. Part#:806246

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM700 Controller; DX80 Performance Gateway 900 MHz 1 W; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    US
  • Modbus/TCP
    Yes
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • RS-485
    Yes
  • PROFINET
    Yes
  • RS-232
    No
  • EtherNet/IP
    Yes
  • Feature: Hazardous Area
    No
  • Application: Indicator Light
    Yes
  • Modbus RTU
    Yes
  • Dimension Length (mm)
    70
  • Application: Pick-to-Light
    Yes
  • Processing Speed (MHz)
    300
  • Star Topology
    Yes
  • Tree Topology
    No
  • On-Board Memory (MB)
    16
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • Relative Humidity
    95%
  • LCD Display
    Yes
  • Power
    DC
  • Power Supply
    12-30 V dc
  • Discrete Outputs
    Yes
  • Device Type
    Wireless Controller with Performance Gateway
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Output Details
    4 PNP
  • Housing Style
    External Terminals
  • Input/Output
    Analog & Discrete

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM700-B1R1 on Powermatic Associates is $774.00. Order now.

About the product

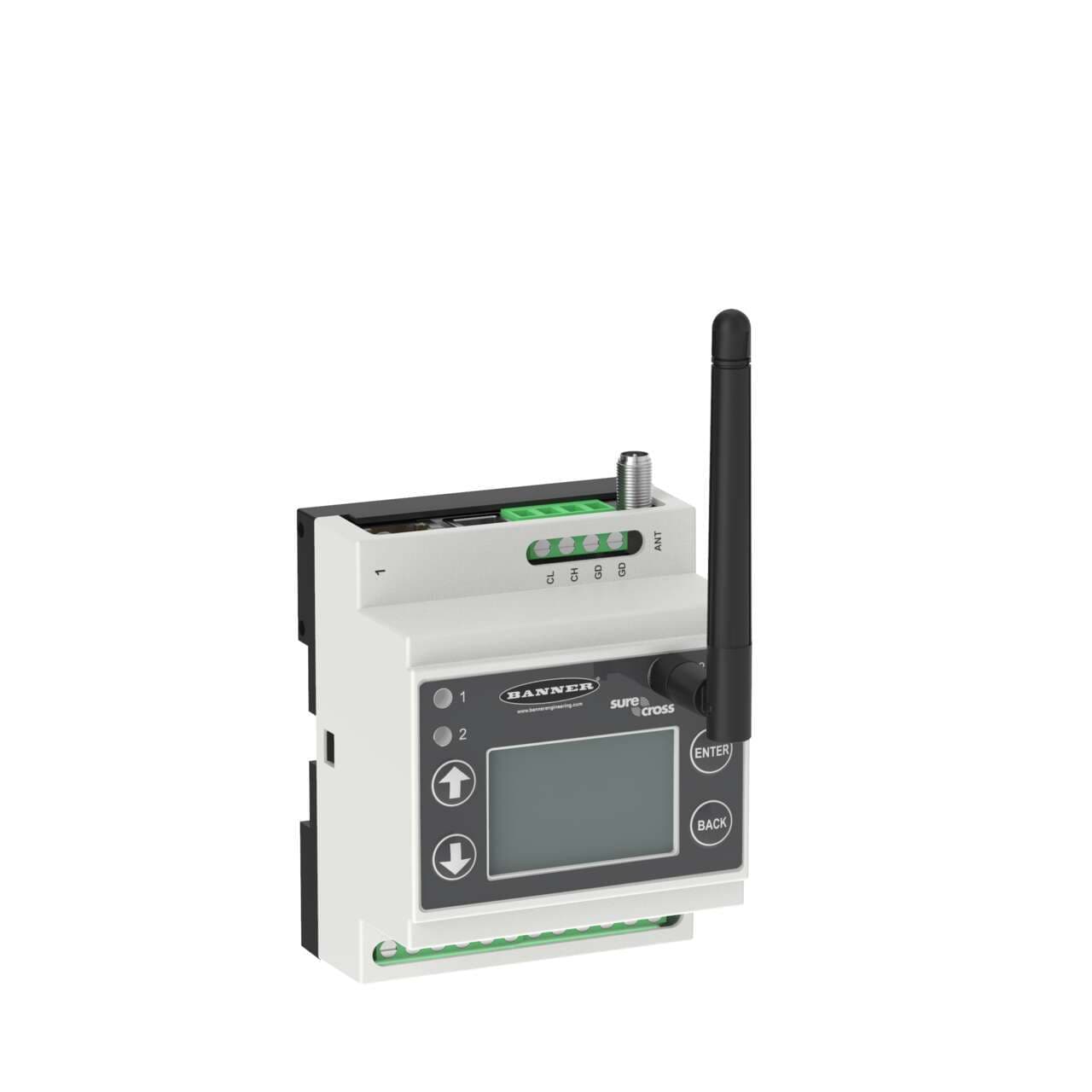

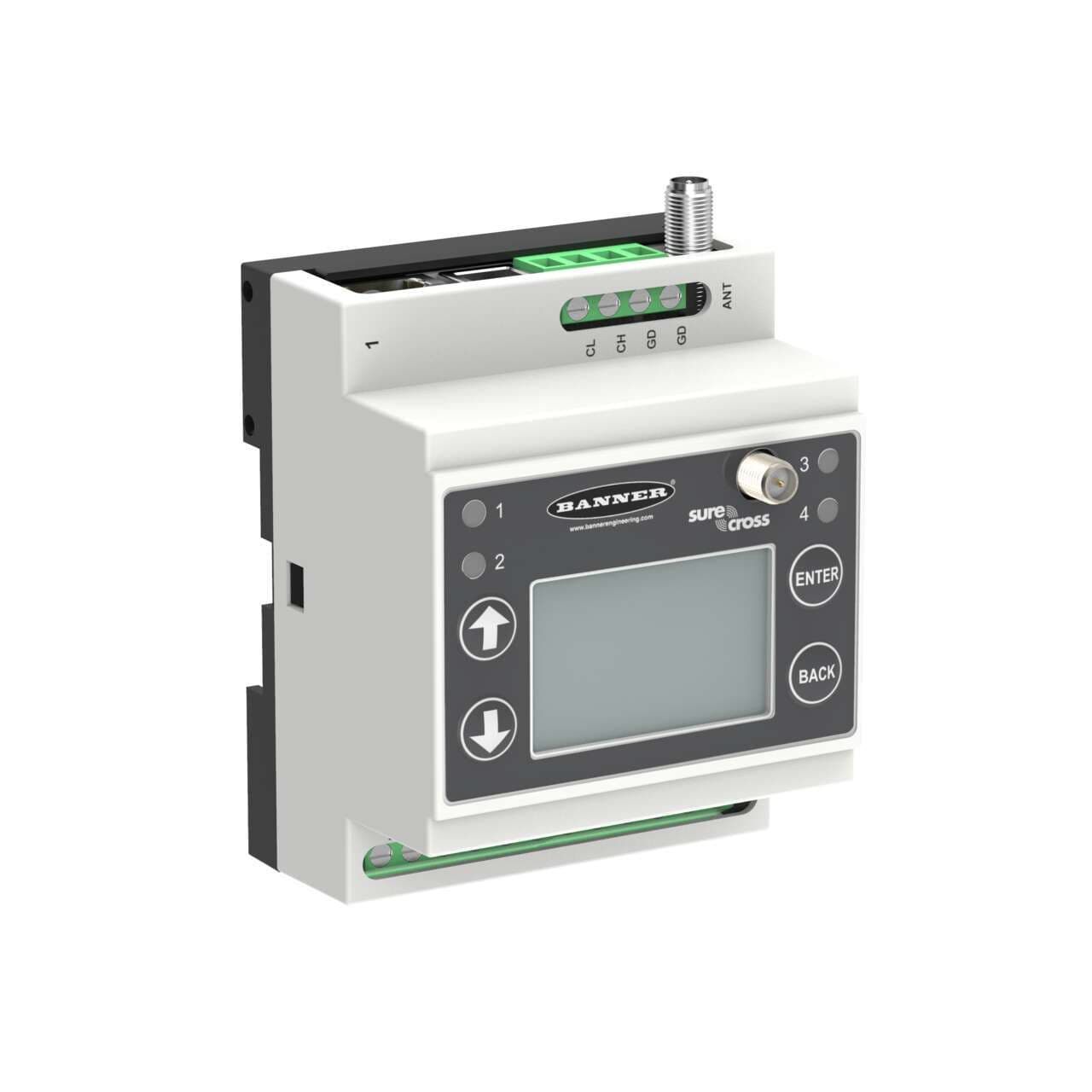

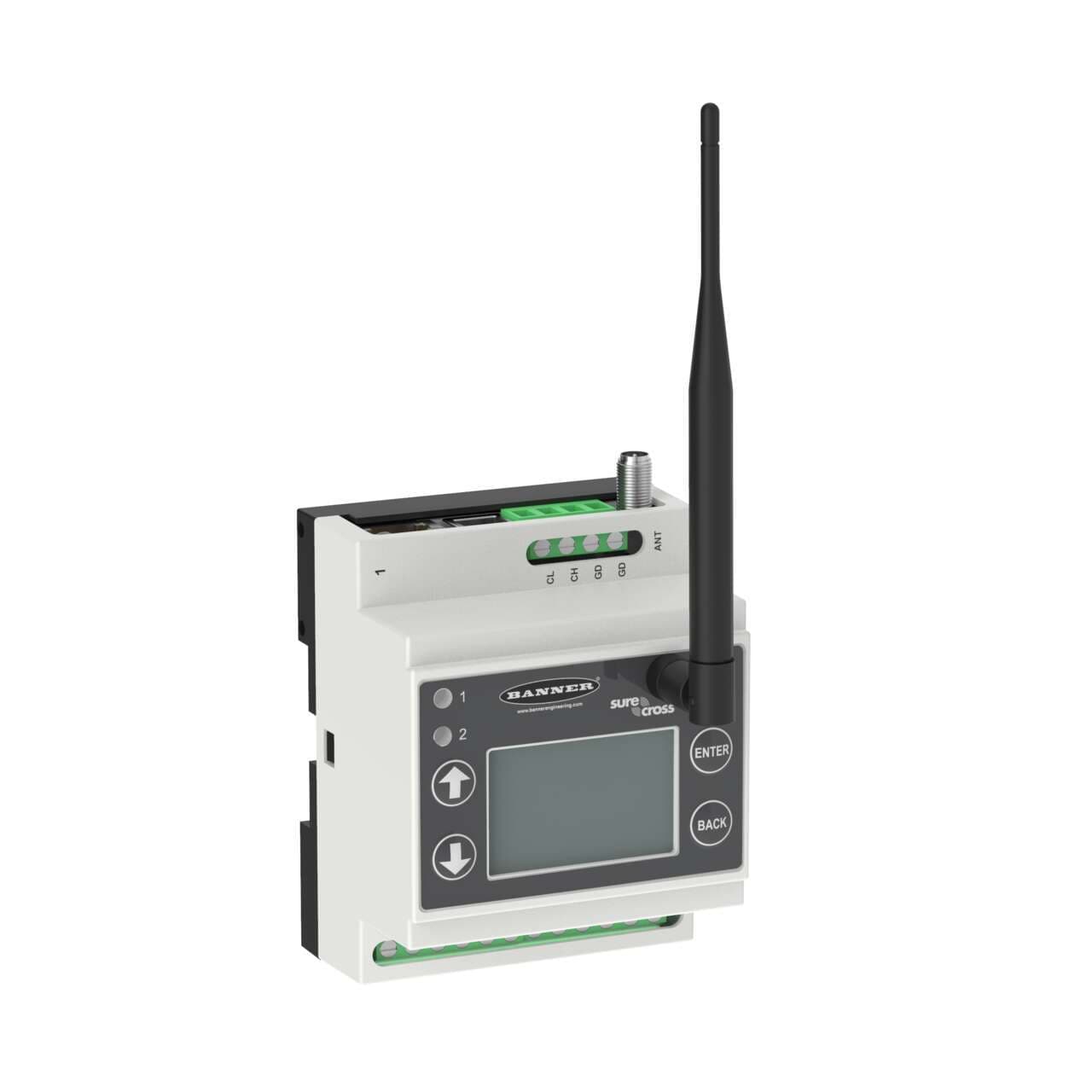

Banner Engineering DXM700-B1R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers an IP20 degree of protection. The dimensions of this controller are H58.1mm x W70mm x D94.5mm. It features 4 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA) and utilizes a 900 MHz transmission frequency. As a Modbus I/O controller within the DXM700-B1 series, it incorporates a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, employing FHSS (Frequency Hopping Spread Spectrum) technology with an M7 processor. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. The memory capacity is 16MB on-board memory and an expandable 8GB via SD card. Operating on a 900MHz ISM band with a 1W radio (PE5 performance radio; North America), it can achieve a maximum transmission distance of 9.6km at nominal emission power.
