DF-G1-NS-Q5 Banner Sensor Accessories

Name: DF-G1-NS-Q5
Brand: Banner
Price: 189 USD
Availability: BackOrder

Part#:DF-G1-NS-Q5

Manufacturer:Banner

Alt. Part#:19353

Product Lifecycle:Active

Get a quick Quote!

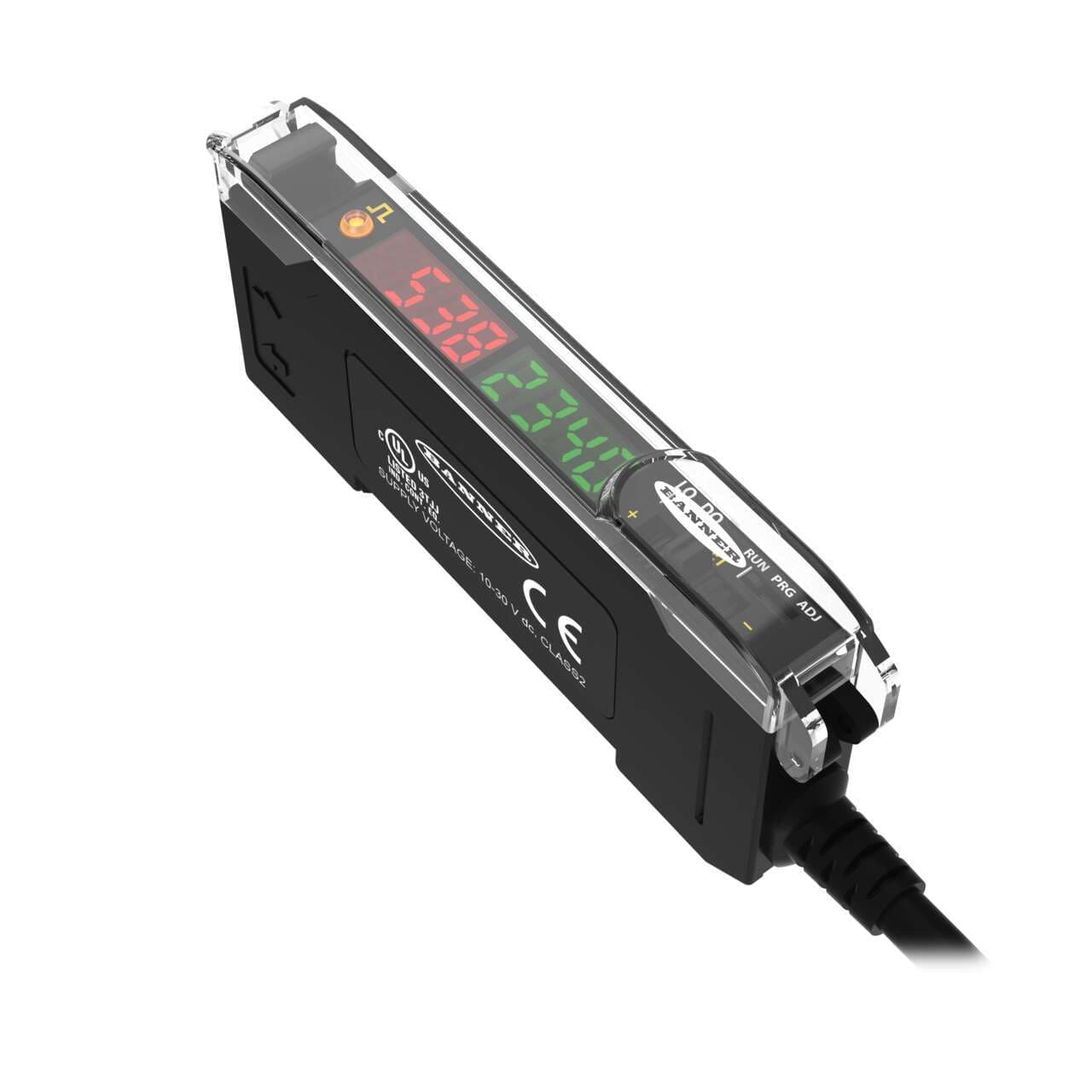

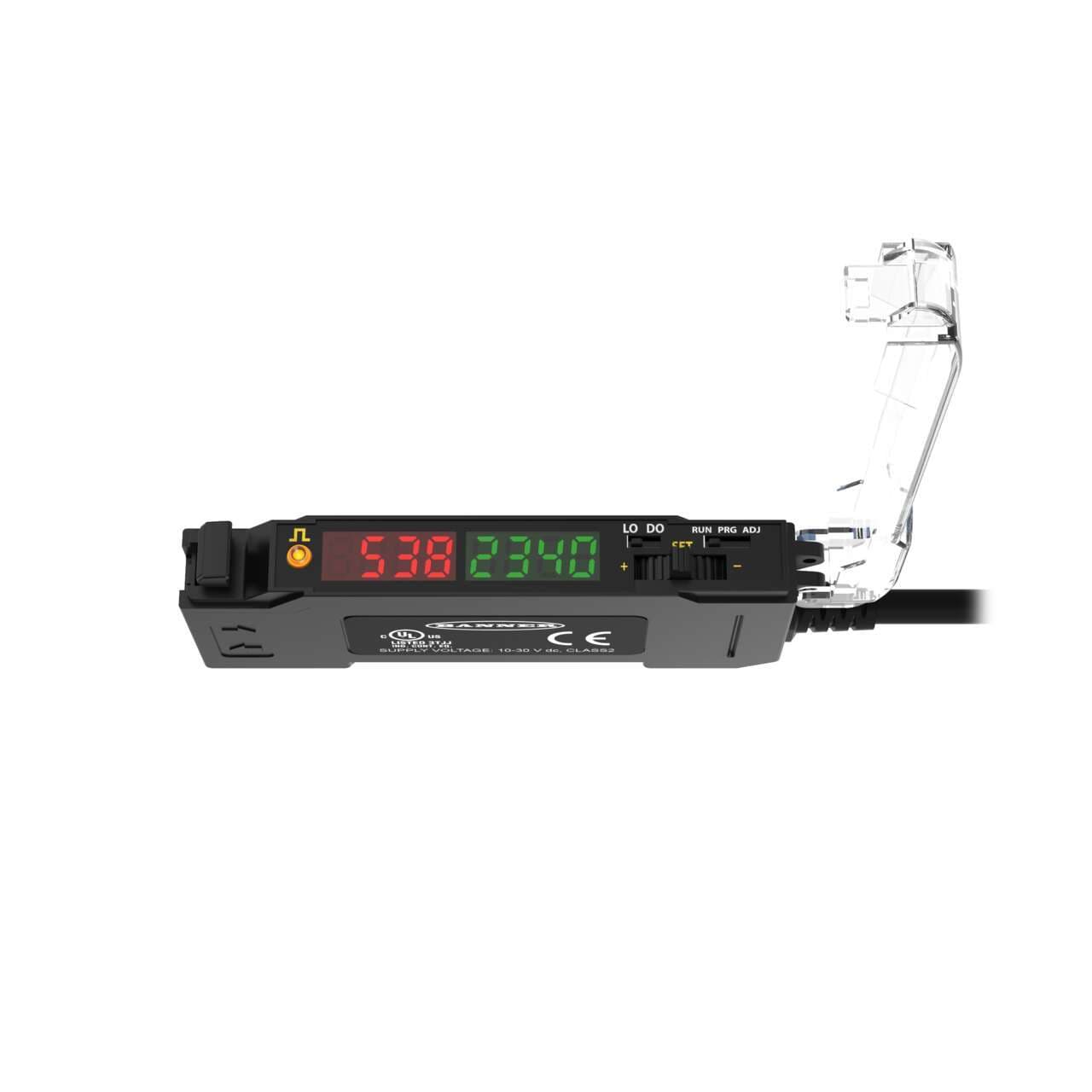

DF-G1 Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output: 1 NPN; 150 mm (6 in) 4-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G1-NS-Q5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
72.121128 g
Country Of Origin
CN
Housing Material
Thermoplastic
Feature: Audible
No
IO Link
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
Yes
Special Feature: Bussable Power
No
Minimum response time (ms)
.2
Indicator Display Type
Dual Digital Displays
Delay at Power-up (ms)
500
Power Supply/Supply Voltage
10-30 V dc
Intrinsically Safe
No
Adjustments
Teach Button
Crosstalk Avoidance
Yes
Special Feature: Remote Teach
Yes
Min Op. Temperature (°C)
-10
Max Op. Relative Humidity (%)
90% @ 60°C
Repeatability (µs)
66 to 100
Max Op. Temperature (°C)
55

IP Rating

IP50

NEMA Rating

NEMA 1

Quick Disconnect Type

M12 (Euro)

Number of Pins

Output Type (Specific)

Single Discrete

Output

NPN

Housing Style

DIN Rail

Color LED - Amplifiers

Red

Connection

Pigtail QD

Fiber Type

Plastic and Glass

Cable Length (m)

0.15

Input/Output

Discrete

Primary Housing Material

Thermoplastic

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DF-G1-NS-Q5 Description

Banner Engineering DF-G1-NS-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 660 nm. It has a rapid response time of 0.2ms / 0.0002 s and includes 1 x digital output (NPN transistor). The DF-G1-NS-Q5, part of the DF-G1 Expert series, is rectangular in shape and incorporates dual-display fiber optic sensor amplifier functions with a TEACH mode design. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).

$189.00

Request a quote, and we will send availability within minutes.

Select Qty:

$189.00

$189.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
