D10DNFPQ
Banner
Product Lifecycle: Active

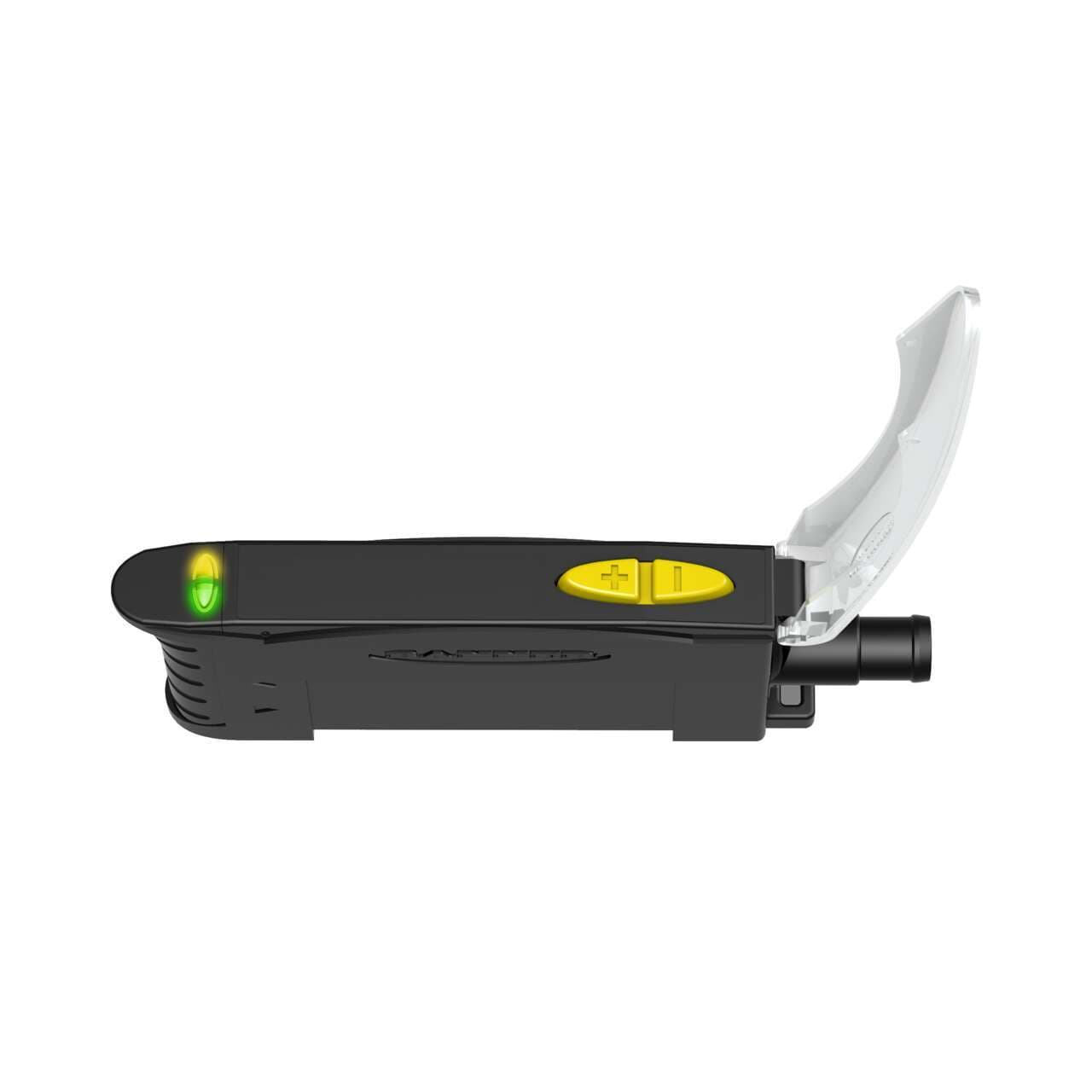

Banner Engineering D10DNFPQ is an amplifier for sensor applications, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible red light with a wavelength of 680 nm and achieves a response time of 50µs / 0.00005 s. The D10DNFPQ is equipped with 2 x digital outputs (NPN transistor) and is part of the D10 Expert series. Its design incorporates TEACH mode for red beam plastic fiber and it connects via a pre-equipped 6-pin Pico-style M8 connector. The supply voltage required for operation is 12Vdc-24Vdc. Its shape is rectangular, with net dimensions of 36 mm in depth and 69 mm in height.
![D10DNFPQ](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Ff62dec22-6652-44ff-813e-63f12737dba4.jpeg&w=3840&q=75)
Banner Engineering D10DNFPQ is an amplifier for sensor applications, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible red light with a wavelength of 680 nm and achieves a response time of 50µs / 0.00005 s. The D10DNFPQ is equipped with 2 x digital outputs (NPN transistor) and is part of the D10 Expert series. Its design incorporates TEACH mode for red beam plastic fiber and it connects via a pre-equipped 6-pin Pico-style M8 connector. The supply voltage required for operation is 12Vdc-24Vdc. Its shape is rectangular, with net dimensions of 36 mm in depth and 69 mm in height.
Product details
- Housing MaterialThermoplastic
- IO LinkNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Feature: Timing (Hold/Delay)Yes
- Special Feature: Bussable PowerNo
- Minimum response time (ms).05
- Indicator Display TypeSingle Digital Display
- Delay at Power-up (ms)1000
- Power Supply/Supply Voltage12-24 V dc
- AdjustmentsTeach Button
- Intrinsically SafeNo
- Crosstalk AvoidanceYes
- Special Feature: Remote TeachYes
- Max Op. Relative Humidity (%)90% @ 50°C
- Repeatability (µs)25 to 100
- IP RatingIP50
- Min Op. Temperature (°C)-10
- Max Op. Temperature (°C)55
- NEMA RatingNEMA 1
- Number of Pins6
- Output Type (Specific)Dual Discrete
- PowerDC
- OutputNPN
- Quick Disconnect TypeM8 (Pico)
- Housing StyleDIN Rail
- ConnectionIntegral QD
- Primary Housing MaterialThermoplastic
- Color LED - AmplifiersRed
- Fiber TypePlastic and Glass
- Input/OutputDiscrete
- FunctionsHigh-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Compliant with standard(s)cURus CE
- Net Height (mm)68.1 mm
- Main functionAmplifier for sensor
- DisplayLED 4 digits display
- Sub-range nameD10 Expert series
- Wavelength680 nm
- Mounting modeDIN rail mounting

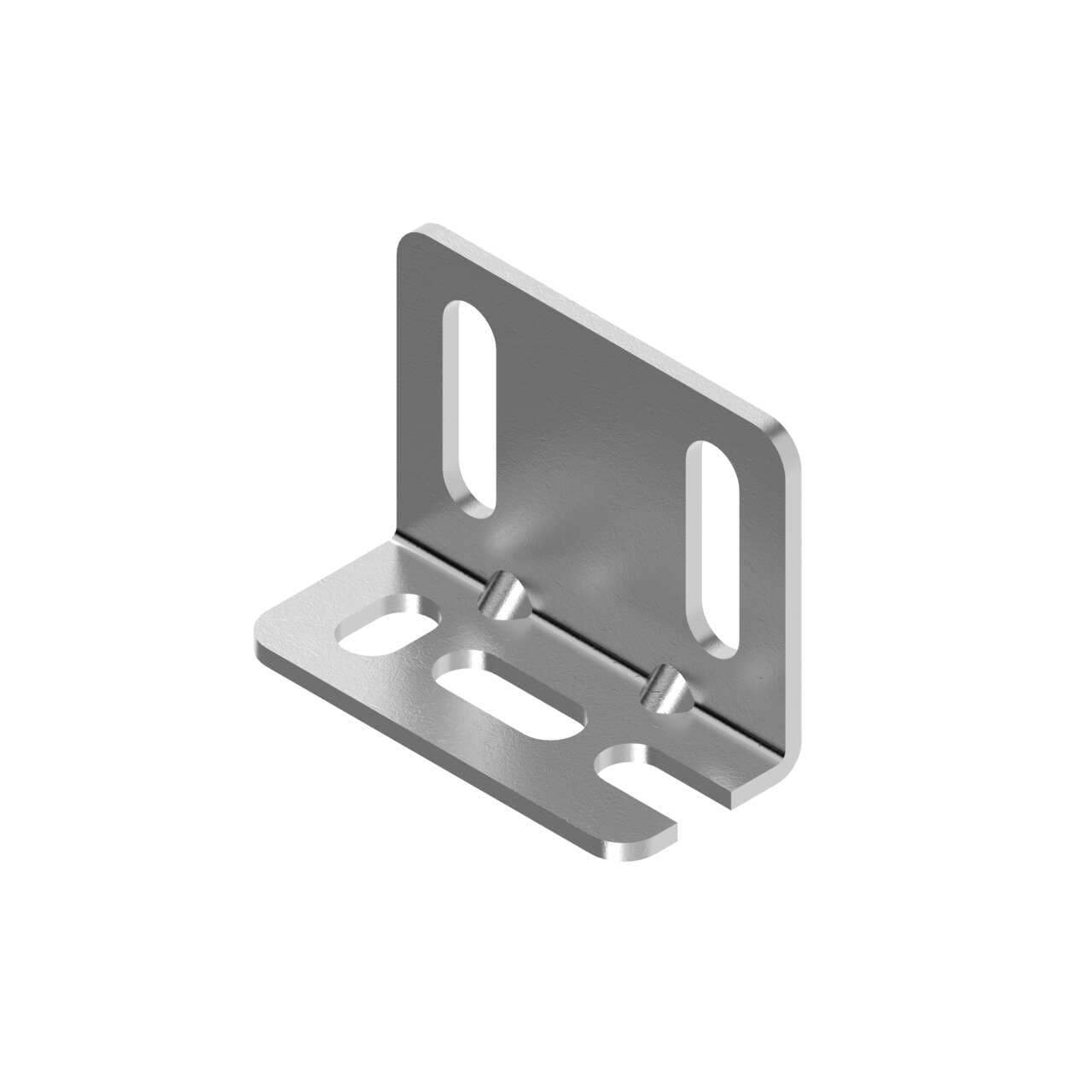

- Contentsmounting bracket M3 hardware
- Product series / family nameFiber optic amplifiers
- ShapeRectangular
- Degree of protectionIP50 NEMA 1
- Technical compatibility withplastic fiber optic cable
- Net Depth (mm)35.9 mm
- Primary brandBanner Engineering
- Light ColorVisible red
- Ambient air temperature for operation-10...+55 °C
- Net Width (mm)10.5 mm
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Order code / Manufacturer SKU62380
- Digital outputs2 x digital outputs (NPN transistors)
- Supply voltage (DC)12Vdc-24Vdc
- Materialthermoplastic housing Polycarbonate cover
