BT18S Banner Fiber Optic Amplifiers

BT18S on Powermatic Associates
Banner

Part#:BT18S

Manufacturer:Banner

Alt. Part#:20353

Product Lifecycle:Active

Get a quick Quote!

FIBER BT18S

About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Amplifiers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the BT18S Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BT18S Description

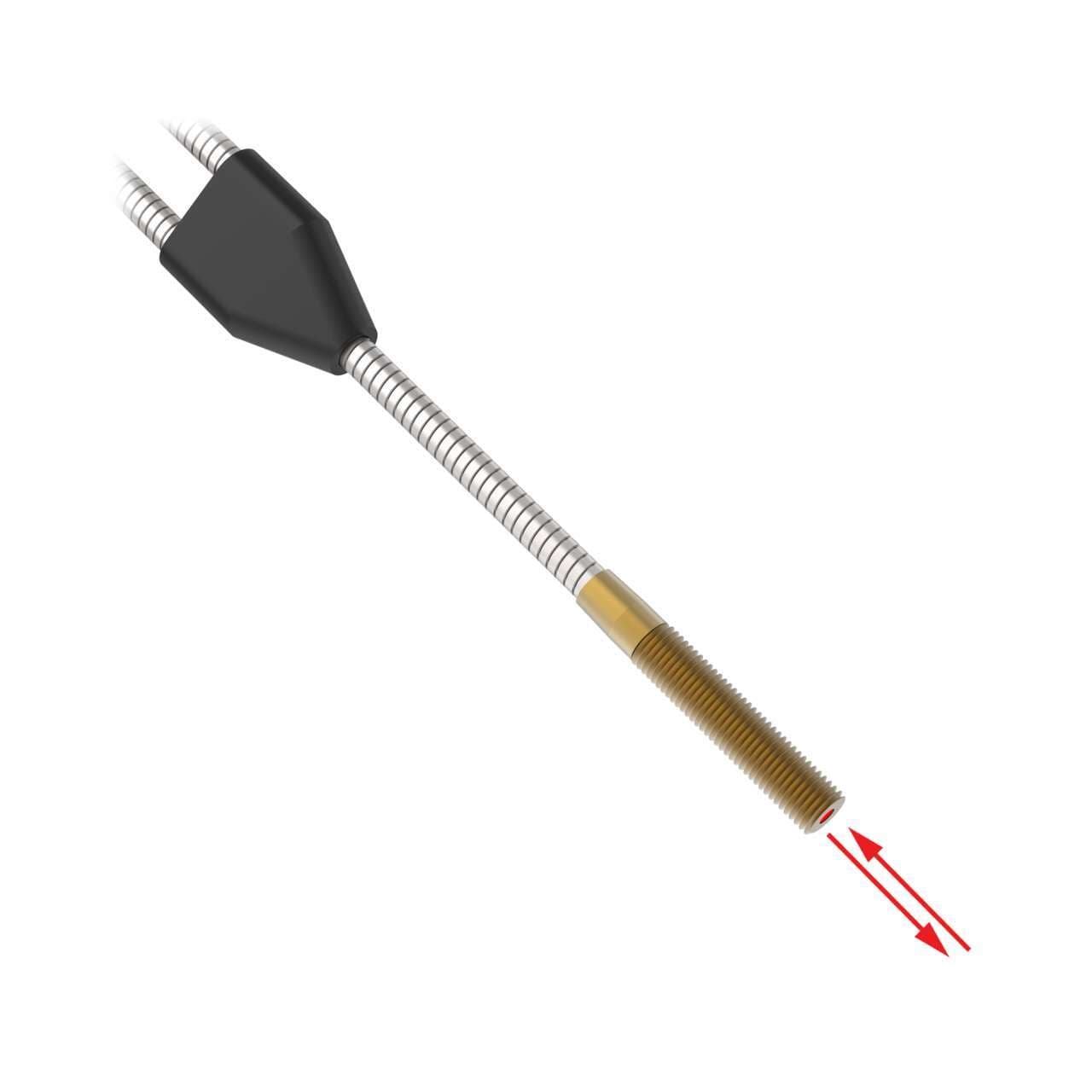

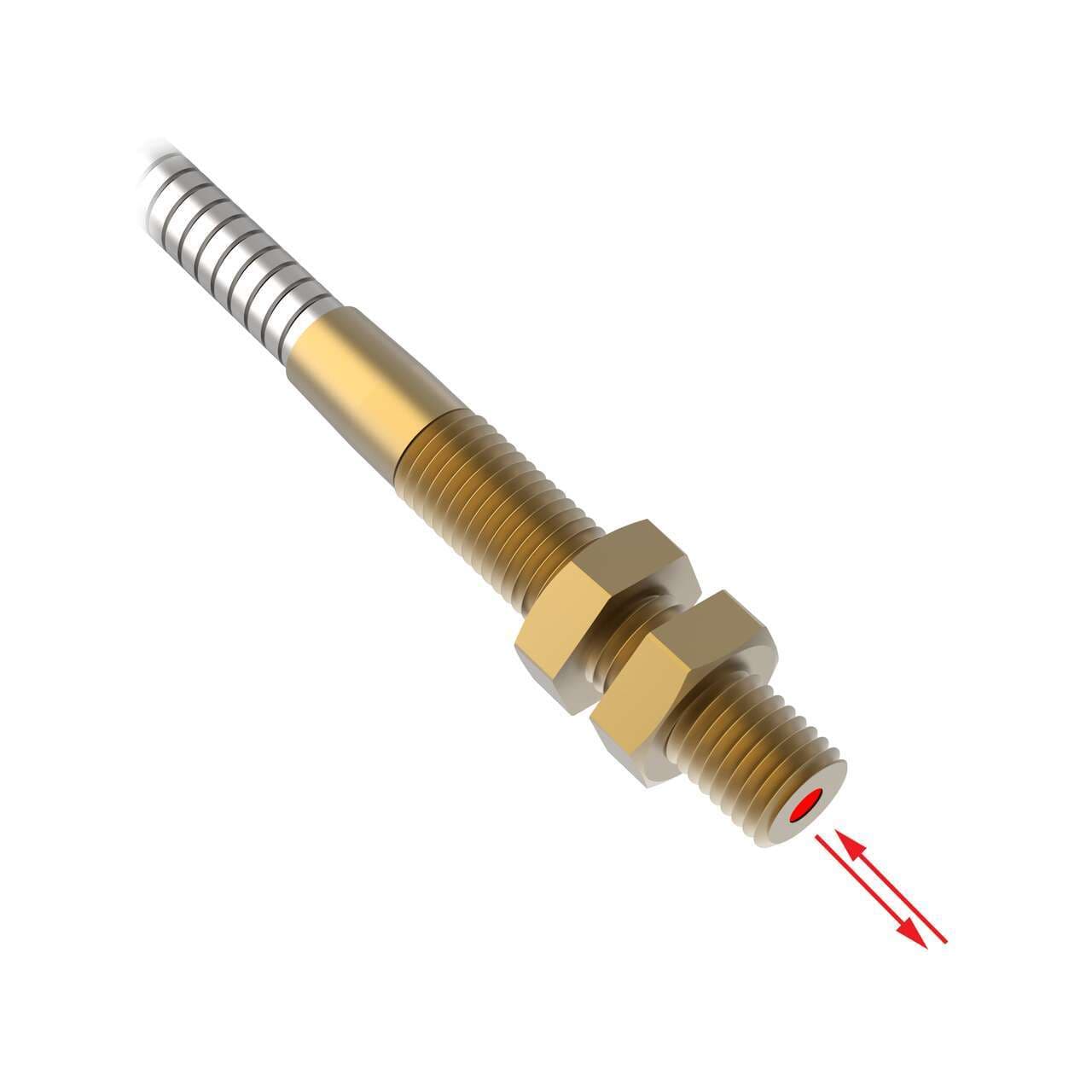

Banner Engineering BT18S, part of the Glass fiber series, is a fiber optic sensor designed with a diffuse-reflective system and bifurcated fiber in-line sensing. This sensor features a brass sensing end, glass fiber, and a stainless steel monocoil construction. It has a 1.6mm fiber core diameter and comes in a cylindrical shape with a threaded end tip. The BT18S has a length of 8ft / 2.44m and is capable of operating in ambient air temperatures up to +249°C.

Manufacturer warranty

$219.00

Request a quote, and we will send availability within minutes.

Select Qty:

$219.00

$219.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
