2CCP844001R1829 ABB Control Industrial Automation Components

2CCP844001R1829 on Powermatic Associates
ABB Control

Part#:2CCP844001R1829

Manufacturer:ABB Control

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

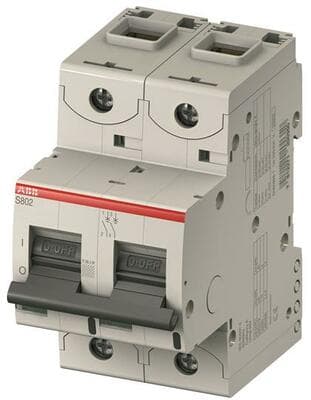

ABB 2CCP844001R1829 is a Miniature Circuit Breaker (MCB) designed specifically for photovoltaic (PV) or solar DC applications. It features screw-clamp connections for secure installation and is rated for a current of 100A with a maximum DC voltage of 1200Vdc. The device has a net height of 106 mm, a net width accommodating 4-poles (4P), and a rated impulse voltage (Uimp) of 8 kV, ensuring it can handle high-voltage spikes. Its rated insulation voltage (Ui) is 1500 V, with a control voltage for DIN rail mounting. The MCB is designed for 10,000 operations, indicating its durability and longevity in solar energy systems.

Product Details

  • Secondary brand
    Stotz
  • Main function
    Miniature Circuit Breaker (MCB)
  • Ultimate short circuit current breaking capacity (Icu)
    5kA (1200Vdc)
  • Size in modules (1 module = 18mm)
    6 Module(s)
  • Rated impulse voltage (Uimp)
    8 kV
  • Net Height (mm)
    95 mm
  • Primary brand
    ABB
  • Poles
    4-poles (4P)
  • Connection type
    Screw-clamp connections
  • Rated insulation voltage (Ui)
    1500 V
  • Net Width (mm)
    106 mm
  • Functions
    Miniature Circuit Breaker (MCB) for photovoltaic (PV) / solar DC applications
  • Rated current
    100A
  • Mounting mode
    DIN rail
  • Degree of pollution
    2
  • Product series / family name
    S800PV series
  • Service short circuit current breaking capacity (Ics)
    5kA (1200Vdc)
  • Mechanical durability (at no load)
    10 000 operations
  • Net Depth (mm)
    82.5 mm
  • Tripping curve
    S
  • Rated Voltage (DC)
    1200Vdc
  • Compliant with standard(s)
    IEC60947-2 EN60947-2
  • Electrical durability (with load)
    10 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
