AC/DC Power Supplies
AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

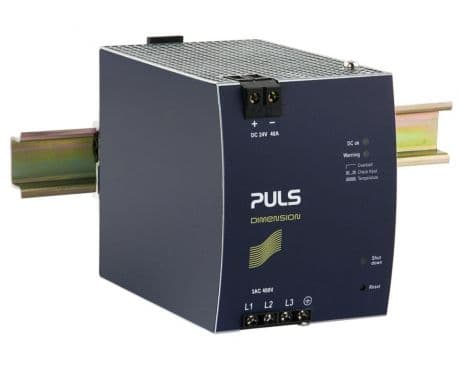

PULS XT40.242 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x432-528Vac (with nominal values of 440Vac, 480Vac, 500Vac, 525Vac; frequency 47-63Hz), a turn-on voltage of 3 x 390Vac, and a shutdown voltage of 3 x 355Vac. The unit is housed in aluminium, measures W96mm x H124mm x D159mm, and features screw-clamp connections for installation. It is rated for a current of 40A at 24Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.242 has a peak inrush current consumption of 4A (at 3x480Vac input), a rated power of 960W at 24Vdc (1200W for typ. 15s), and includes protection functions such as output overvoltage protection (29.9Vdc max.) and overload/short-circuit current protection. It is not suitable for parallel operation to increase output power but supports 1+1 redundancy for higher system availability. The unit's efficiency is rated at 0.955 (at 3x480Vac input), with a 350ms start-up delay, and output voltage fixed at 24Vdc. The hold time is 2ms (at 3x480Vdc input), and power dissipation/losses are 45.2W (at full output load). Its electrical durability is rated at 51000 hours (at 40°C; 40A output; 3AC 480Vdc input) and 142000 hours (at 25°C; 40A output; 3AC 480Vdc input), with an output stage capacitance of 20000µF and a ripple of 1500mVpp.
Quick Quote

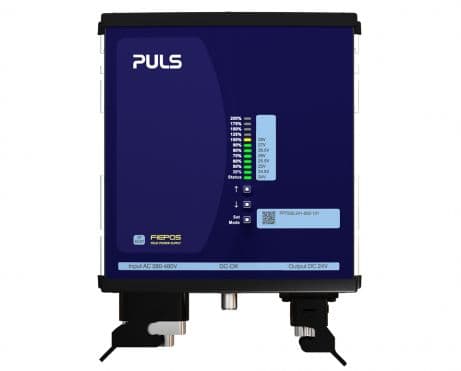

PULS FPT500.241-002-101 is a power supply unit from the FPT500 Basic 3AC series designed for field AC/DC power supply or conversion. It features a DC-OK relay contact output within an aluminium housing and utilizes a HanQ4/2 female connector for input, a 5-pin M12 connector for DC-OK, and a HanQ4/0 connector for output. This unit offers protection against output overvoltage, overload, short-circuit, and over-temperature, with specific mechanisms for handling heavy overloads and automatic restarts under certain conditions. It does not support series or parallel operation and is designed to resist back-feeding loads up to 35V / 4J. The rated current is 20.8A at 24Vdc, with a supply voltage range of 323Vac-552Vac across various nominal voltages and frequencies. It is designed for hanging or screw mounting, operates within an ambient air temperature range of -25 to +70°C, and offers IP65 and IP67 protection. The unit operates on a 3-phase network, with specific current consumption and efficiency ratings based on input voltage. It provides a rated power of 600W to 350W depending on the operating temperature, with short-term power availability up to 1000W. The output voltage is adjustable between 24Vdc and 28Vdc, with a specified electrical durability and power dissipation/losses under different conditions.
Quick Quote
PULS CP5.241-C1 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 32mm and dimensions of W32mm x H124mm x D102mm. This unit has a current consumption of 7A peak max. inrush at both 230Vac and 120Vac input, with efficiencies of 0.943, 0.935, and 0.927 at 230Vac, 120Vac, and 100Vac inputs respectively. The CP5.241-C1 is equipped with a conformal coated PCB for resistance to harsh environments. It offers a start-up delay of 380-420ms and rise times of 80ms and 100ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and 1+1 redundancy using a redundancy module. Power dissipation/losses are 7.3W and 8.2W at full output load for 230Vac and 120Vac inputs, respectively. The output stage capacitance is 1800µF, and electrical durability ranges from 96,000 to 775,000 hours under various conditions. The ripple is 50mVpp, and the unit functions as an AC/DC power supply with a 20% power reserve. It belongs to the CP-series and features a design with conformal coating, 20% power reserve, and DC-OK relay contact output. Connection is made via screw-clamp connections. Supply voltage ranges from 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and a rated power of 120W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms.
Quick Quote
Power Supply, 240W, AC 200-240V input, 1 phase, 24-28Vdc output, 10A, DC-OK relay contact
Quick Quote
SDP124100T SolaHD - SolaHD™ SDP Low Power DIN Rail Series Power Supplies - PN SDP124100T
Quick Quote
SLS050601T SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN SLS050601T
Quick Quote
SCP30S48BDN SolaHD - SolaHD™ SCP Series 30 Watt Switched Power Supplies - PN SCP30S48BDN
Quick Quote
SDNPMBRK2 SolaHD - SolaHD™ SDN-C Performance DIN Rail Series Power Supplies - PN SDNPMBRK2
Quick Quote
83242123 SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN 83242123
Quick Quote
| Item | Manufacturer | Price | Stock | Delivery | |
|---|---|---|---|---|---|
| XT40.242 PULS XT40.242 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x432-528Vac (with nominal values of 440Vac, 480Vac, 500Vac, 525Vac; frequency 47-63Hz), a turn-on voltage of 3 x 390Vac, and a shutdown voltage of 3 x 355Vac. The unit is housed in aluminium, measures W96mm x H124mm x D159mm, and features screw-clamp connections for installation. It is rated for a current of 40A at 24Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.242 has a peak inrush current consumption of 4A (at 3x480Vac input), a rated power of 960W at 24Vdc (1200W for typ. 15s), and includes protection functions such as output overvoltage protection (29.9Vdc max.) and overload/short-circuit current protection. It is not suitable for parallel operation to increase output power but supports 1+1 redundancy for higher system availability. The unit's efficiency is rated at 0.955 (at 3x480Vac input), with a 350ms start-up delay, and output voltage fixed at 24Vdc. The hold time is 2ms (at 3x480Vdc input), and power dissipation/losses are 45.2W (at full output load). Its electrical durability is rated at 51000 hours (at 40°C; 40A output; 3AC 480Vdc input) and 142000 hours (at 25°C; 40A output; 3AC 480Vdc input), with an output stage capacitance of 20000µF and a ripple of 1500mVpp. | Puls | Quick Quote | ||
| FPT500.241-002-101 PULS FPT500.241-002-101 is a power supply unit from the FPT500 Basic 3AC series designed for field AC/DC power supply or conversion. It features a DC-OK relay contact output within an aluminium housing and utilizes a HanQ4/2 female connector for input, a 5-pin M12 connector for DC-OK, and a HanQ4/0 connector for output. This unit offers protection against output overvoltage, overload, short-circuit, and over-temperature, with specific mechanisms for handling heavy overloads and automatic restarts under certain conditions. It does not support series or parallel operation and is designed to resist back-feeding loads up to 35V / 4J. The rated current is 20.8A at 24Vdc, with a supply voltage range of 323Vac-552Vac across various nominal voltages and frequencies. It is designed for hanging or screw mounting, operates within an ambient air temperature range of -25 to +70°C, and offers IP65 and IP67 protection. The unit operates on a 3-phase network, with specific current consumption and efficiency ratings based on input voltage. It provides a rated power of 600W to 350W depending on the operating temperature, with short-term power availability up to 1000W. The output voltage is adjustable between 24Vdc and 28Vdc, with a specified electrical durability and power dissipation/losses under different conditions. | Puls | Quick Quote | ||
| CP5.241-C1 PULS CP5.241-C1 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 32mm and dimensions of W32mm x H124mm x D102mm. This unit has a current consumption of 7A peak max. inrush at both 230Vac and 120Vac input, with efficiencies of 0.943, 0.935, and 0.927 at 230Vac, 120Vac, and 100Vac inputs respectively. The CP5.241-C1 is equipped with a conformal coated PCB for resistance to harsh environments. It offers a start-up delay of 380-420ms and rise times of 80ms and 100ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and 1+1 redundancy using a redundancy module. Power dissipation/losses are 7.3W and 8.2W at full output load for 230Vac and 120Vac inputs, respectively. The output stage capacitance is 1800µF, and electrical durability ranges from 96,000 to 775,000 hours under various conditions. The ripple is 50mVpp, and the unit functions as an AC/DC power supply with a 20% power reserve. It belongs to the CP-series and features a design with conformal coating, 20% power reserve, and DC-OK relay contact output. Connection is made via screw-clamp connections. Supply voltage ranges from 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and a rated power of 120W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms. | Puls | Quick Quote | ||
| PIC240.241C Power Supply, 240W, AC 200-240V input, 1 phase, 24-28Vdc output, 10A, DC-OK relay contact | Puls | Quick Quote | ||
| SVL524100 SVL524100 SolaHD - SolaHD™ SVL Series Power Supplies - PN SVL524100 | SolaHD | Quick Quote | ||
| SDP124100T SDP124100T SolaHD - SolaHD™ SDP Low Power DIN Rail Series Power Supplies - PN SDP124100T | SolaHD | Quick Quote | ||
| SLS050601T SLS050601T SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN SLS050601T | SolaHD | Quick Quote | ||
| SCP30S48BDN SCP30S48BDN SolaHD - SolaHD™ SCP Series 30 Watt Switched Power Supplies - PN SCP30S48BDN | SolaHD | Quick Quote | ||
| SDNPMBRK2 SDNPMBRK2 SolaHD - SolaHD™ SDN-C Performance DIN Rail Series Power Supplies - PN SDNPMBRK2 | SolaHD | Quick Quote | ||
| 83242123 83242123 SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN 83242123 | SolaHD | Quick Quote | ||
