862-1604/999-950 WAGO Terminal Blocks
Part#:862-1604/999-950
Manufacturer:WAGO
Category:Terminal Blocks
Product Lifecycle:Active
Product description

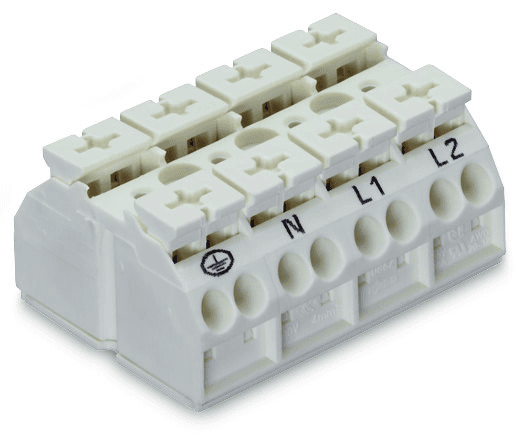

862-1604/999-950 WAGO - 4-conductor chassis-mount terminal strip; suitable for Ex e II applications; without ground contact; PE-N-L1-L2; 4-pole; for 3 mm ø screw and nut; 4 mm²; 4,00 mm²; white
Product Details
- Weight 27.14600714 g
- Country Of Origin Germany
- HTS Code 85369010000
- Depth 1.378 inches, 35 millimeters
- Conductor Material Copper
- Weight 27.146 grams
- Country of Origin Germany
- Flammability Class V0
- Mounting Type Screw
- Conductor Size 12 american wire gauge, 4 millimeters
- Width 1.89 inches, 48 millimeters
- Actuator Push-button
- Package Type Bag
- Color White
- Strip Length 0.43 inches, 11 millimeters
- Insulation Material Polyamide
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 862-1604/999-950 on Powermatic Associates is $3.48. Order now.
About the product
Wago 862-1604/999-950 is a terminal strip designed for feed-through, neutral-through, and ground/earthing chassis-mount applications. It features push-in CAGE CLAMP spring connections and is rated for (Ex e II) 28A. This 1-deck/level terminal strip is suitable for Ex e II applications and has a net width accommodating 2 feed-through poles plus neutral-through and protective-earth (2P+N+PE). The control voltage requires a 3mm screw+nut, and the color is white. It has dimensions of H22.3mm x W48mm x D35mm and is compatible with 0.5mm2 to 4mm2 fine stranded or solid conductors, as well as #20AWG to #12AWG fine stranded or solid conductors. The terminal strip is made from Polyamide (PA) 66 and halogen-free materials. It supports 16-wires (8 push-in + 8 push-in) (8+8) for Normally Closed (NC) auxiliary contacts and operates at a diameter of (Ex e II) 440 V.
Similar products from: WAGO Terminal Blocks
Manufacturer warranty
862-1604/999-950 WAGO
$3.48
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$3.48
$3.48 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 862-1604/999-950 with other Terminal Blocks products
Weight
Country Of Origin
HTS Code
Depth
Conductor Material
Country of Origin
Flammability Class
Mounting Type
Conductor Size
Width
Selected product
862-1604/999-950
WAGO
862-1604/999-950 WAGO - 4-conductor chassis-mount terminal strip; suitable for Ex e II applications;...
Weight27.14600714 g
Country Of OriginGermany
HTS Code85369010000
Depth1.378 inches, 35 millimeters
Conductor MaterialCopper
Country of OriginGermany
Flammability ClassV0
Mounting TypeScrew
Conductor Size12 american wire gauge, 4 mi...
Width1.89 inches, 48 millimeters
2002-1421/1000-413
WAGO
2002-1421/1000-413 WAGO - LED terminal block; red LED (NP); rail mount; 4-conductor; 5.2 mm wide; gr...
Weight7.500001973 g
Country Of OriginGermany
HTS Code85369010000
Depth-
Conductor MaterialCopper
Country of OriginGermany
Flammability ClassV0
Mounting TypeDIN-35 Rail
Conductor Size12 american wire gauge, 4 mi...
Width-
2002-1201
WAGO
2002-1201 WAGO - TOPJOB®S feedthrough terminal block; rail mount; 2-conductor; 5.2 mm wide; gray
Weight5.079001336 g
Country Of OriginGermany
HTS Code85369010000
Depth-
Conductor MaterialCopper
Country of Origin-
Flammability ClassV0
Mounting TypeDIN-35 Rail
Conductor Size12 american wire gauge, 4 mi...
Width-
About the manufacturer
Powermatic Associates is an authorized WAGO distributor, proud to offer a diverse range of high-quality and innovative industrial automation solutions. As a leading manufacturer, WAGO excels in designing and producing cutting-edge electrical interconnection, automation, and interface electronics technologies. Powermatic Associates leverages WAGO's expertise to provide customers with top-of-the-lin...
Recently viewed products
Relevant products
FAQ
What is the price of 862-1604/999-950?
Purchase the 862-1604/999-950 from Powermatic Associates at the price of $3.48. Order today.
Out if stock but available for backorder.
862-1604/999-950 WAGO - 4-conductor chassis-mount terminal strip; suitable for Ex e II applications; without ground contact; PE-N-L1-L2; 4-pole; for 3 mm ø screw and nut; 4 mm²; 4,00 mm²; white
