741-626 WAGO Industrial Automation Components
Part#:741-626
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

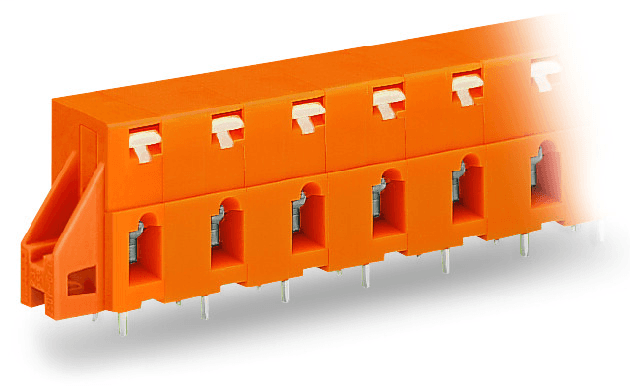

741-626 WAGO - Through-panel PCB terminal strip; 2 solder pins/pole; 6-pole; with integrated push-buttons; pin spacing 10.16 mm / 0.4 in; with fixing flanges; orange
Product Details
- Weight 12.29900323 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Package Type Box
- Contact Type Tin
- Insulation Material Polyamide
- Height 0.886 inches, 22.5 millimeters
- Current 10 amperes, 16 amperes
- Voltage 300 volts, 630 volts
- Contact Material Copper
- Weight 12.299 grams
- Actuator Push-button
- Mounting Type Feed-through Mounting, Mounting Flange, Panel Mounting
- Flammability Class V0
- Depth 0.504 inches, 12.8 millimeters
- Width 2.567 inches, 65.2 millimeters
- Color Orange
- Strip Length 0.24 inches, 6 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 741-626 on Powermatic Associates is $5.35. Order now.
About the product
WAGO 741-626 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 630V, rated impulse voltage (III/3) of 8kV, rated voltage (III/2) of 1000V, rated impulse voltage (III/2) of 8kV, nominal voltage (II/2) of 1000V, rated surge voltage (II/2) of 8kV, and a rated current of 16A. It has UL 1059 approvals with rated voltages of 300V and rated currents of 10A for both Use Group B and D, and CSA approvals with a rated voltage of 300V and rated currents of 16A for Use Group B and 10A for Use Group D. The part features 6 connection points, a total of 6 potentials, 1 connection type, and 1 level, utilizing CAGE CLAMP technology with push-button actuation. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with strip length requirements of 5 to 6mm (0.2 to 0.24 inches). The physical dimensions include a pin spacing of 10.16mm (0.4 inches), width of 65.2mm (2.567 inches), height of 22.5mm (0.886 inches), depth of 12.8mm (0.504 inches), and a solder pin length of 4mm. It is designed for mounting flange, feed-through mounting, or panel mounting, with THT PCB contact and in-line solder pin arrangement. The part is orange, made from Polyamide (PA66) with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel (CrNi) for the clamping spring and Electrolytic Copper (ECu) with tin plating for contacts. It has a fire load of 0.295MJ, weighs 12.3g, and operates within a temperature range of -60 to +105°C. The product belongs to Group 4 (Printed Circuit Connectors), is RoHS compliant without exemption, and comes in a box packaging of 60 pieces per unit (15 pieces per SPU). Its country of origin is CH, with a GTIN of 4044918679534 and a customs tariff number of 85369010000.
