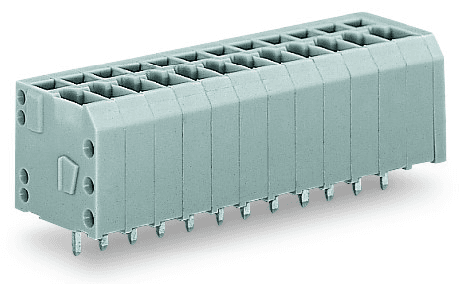

739-302 WAGO Industrial Automation Components

WAGO 739-302 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It has a nominal voltage of 160V for overvoltage category III/3 and pollution degree 3, with a rated impulse voltage of 2.5kV. For overvoltage category III/2 and pollution degree 2, it maintains the same nominal and rated impulse voltage. The nominal voltage increases to 320V for overvoltage category II/2, with a rated surge voltage of 2.5kV and a rated current of 17.5A. According to UL 1059, it has a rated voltage of 300V and a rated current of 15A for Use Group B, and the same rated voltage with a 10A current for Use Group D. This part features two connection points, two total number of potentials, one connection type, and one level. The connection technology is CAGE CLAMP with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.08 to 1.5mm2 (28 to 14 AWG), including fine-stranded conductors with both insulated and uninsulated ferrules. The strip length for connection is 5 to 6mm (0.2 to 0.24 inches), and the conductor connection direction to the PCB is 90 degrees. It has a pole number of 2, pin spacing of 3.5mm (0.138 inches), a width of 8.5mm (0.335 inches), a height of 15.7mm (0.618 inches), a height from the surface of 12.3mm (0.484 inches), and a depth of 13.4mm (0.528 inches). The solder pin length is 3.4mm, with dimensions of 0.6 x 0.8mm, and a drilled hole diameter with tolerance of 1.1 (+0.1)mm. It does not support plugging without loss of pin spacing, has THT PCB contact, in-line solder pin arrangement, and one solder pin per potential. The part is gray, made from Polyamide (PA66) with a flammability class of V0 per UL94, and uses Chrome-Nickel spring steel (CrNi) for the clamping spring, with electrolytic copper (ECu) for the contact material and tin plating. It has a fire load of 0.028MJ and weighs 1.5g. It operates within a temperature range of -60 to +105°C. Packaged in boxes, it comes in a product group 4 (Printed Circuit Connectors), with eClass 10.0 and 9.0 classification of 27-44-04-01, ETIM 8.0 and 7.0 classification of EC002643, a packaging unit of 560 (140) pcs, and is manufactured in Poland. The GTIN is 4044918301312, with a customs tariff number of 85369010000, and it complies with RoHS without exemptions.
