739-162 WAGO Industrial Automation Components

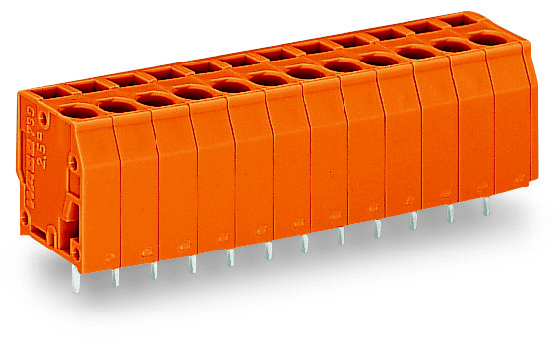

WAGO 739-162 is an automation part with a short circuit breaking rating and electrical data adhering to IEC/EN 60664-1 standards, including nominal voltages of 320V (III/3), 320V (III/2), and 630V (II/2), with rated impulse voltages of 4kV for both III/3 and III/2, and a rated surge voltage of 4kV for II/2. It has a rated current of 24A according to IEC/EN standards. UL ratings include 300V and 20A for Use Group B, and 300V and 10A for Use Group D, while CSA ratings are 300V and 12A for Use Group B, and 300V and 10A for Use Group D. The part features 12 connection points, a single connection type, and one level, utilizing CAGE CLAMP technology with an operating tool actuation type. It supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 14 AWG for solid and 28 to 12 AWG for fine-stranded), and includes specifications for conductor strip length and connection direction. Physical specifications include a pin spacing of 5.08mm, dimensions of 62.38mm in width, 19mm in height, 14.3mm in depth, and a solder pin length of 3.2mm. The terminal block is orange, made from Polyamide (PA66) with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for its contacts. It operates within a temperature range of -60 to +105°C, is RoHS compliant without exemptions, and comes in a box packaging with 60 pieces per unit. The product is manufactured in Switzerland, with a GTIN of 4044918860567 and a customs tariff number of 85369010000.
