734-338/019-000 WAGO Industrial Automation Components

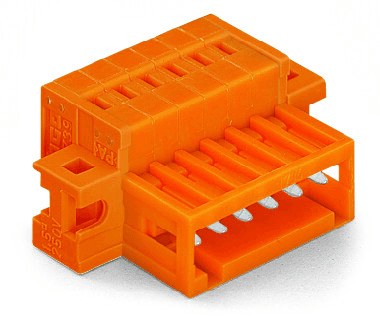

WAGO 734-338/019-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating that these connectors should not be connected or disconnected under load or when live. It adheres to electrical ratings per IEC/EN 60664-1, with nominal voltages of 160V and 320V under different conditions, rated impulse voltage of 2.5kV, and a rated current of 10A. UL and CSA approvals are included, with rated voltages of 300V and rated currents of 10A under both UL and CSA standards for different use groups. The connector features 8 connection points, supports a single connection type with one level, and utilizes CAGE CLAMP technology for connection. It accommodates solid and fine-stranded conductors ranging from 0.08 to 1.5mm2 (28 to 14 AWG), with specific instructions for terminating conductors and a strip length of 6 to 7mm. The physical dimensions include a pin spacing of 3.81mm, width of 45.28mm, height of 13.4mm, and depth of 22.3mm. It offers variable coding, multiple mounting options including mounting flange, feed-through, and panel mounting, and features anti-rotation protection. The male connector/plug is designed for conductor connection, with mismating protection but no locking mechanism for the plug-in connection. The connector is orange, made from Polyamide (PA66) with a flammability class of UL94 V0, and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for the clamping spring and contact materials, respectively. It operates within a temperature range of -60 to +100°C, has a fire load of 0.174MJ, and weighs 7.9g. RoHS compliance is affirmed without exemptions, and it is packaged in boxes of 50 pieces, with the country of origin being Poland.
