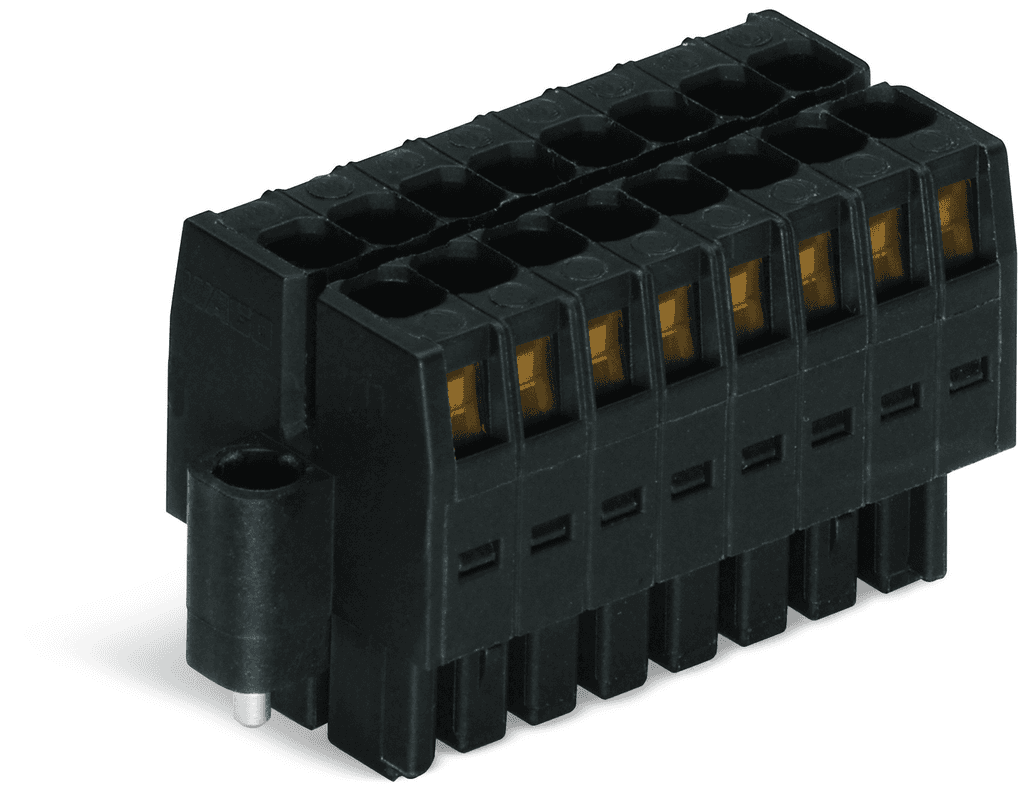

713-1106/107-9037 WAGO Electrical Connector Accessories

WAGO 713-1106/107-9037 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 80V (III/3), 160V (III/2), and 250V (II/2), rated impulse voltages of 2.5kV across these categories, and a rated current of 10A. UL and CSA approvals are noted, with UL ratings of 300V and 50V for different use groups, both at 10A, and similar CSA ratings. It features 12 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 1.5mm2 (28 to 16 AWG), including those with insulated or uninsulated ferrules. The connector has a 12-pole number, a pin spacing of 3.5mm, dimensions of 31.1mm in width, 18.8mm in height, and 16mm in depth, and includes features like variable coding, anti-rotation protection, and mismating protection. The material composition includes a glass fiber-reinforced polyamide insulation, chrome-nickel spring steel for the clamping spring, a copper alloy for contacts with tin plating, and it has a flammability class of UL94 V0. It operates within a temperature range of -60 to +100°C, has a fire load of 0.101MJ, and weighs 7g. The product is RoHS compliant, packaged in boxes of 25 pieces, and has a country of origin of PL.
