232-316/026-000 WAGO Industrial Automation Components
Part#:232-316/026-000
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

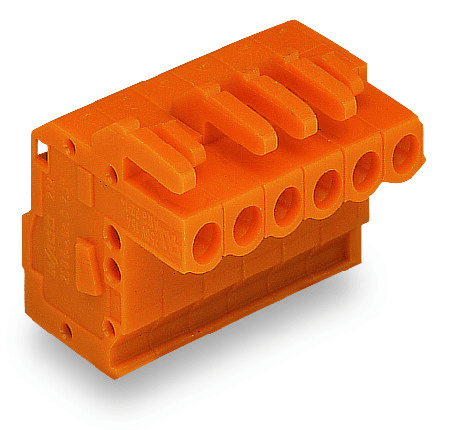

232-316/026-000 WAGO - 1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 16-pole; 2,50 mm²; orange
Product Details
- Weight 29.80600784 g
- Country Of Origin Poland
- HTS Code 85366990990
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Depth 0.896 inches, 22.75 millimeters
- Strip Length 0.35 inches, 9 millimeters
- Connection Type For Conductor
- Package Type Box
- Contact Material Copper Alloy
- Contact Type Tin
- Actuator Operating Tool
- Height 0.941 inches, 23.9 millimeters
- Width 3.294 inches, 83.68 millimeters
- Color Orange
- Insulation Material Polyamide
- Current 14 amperes, 15 amperes
- Voltage 300 volts, 320 volts
- Country of Origin Poland
- Flammability Class V0
- Weight 29.806 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 232-316/026-000 on Powermatic Associates is $15.96. Order now.
About the product
WAGO 232-316/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V (III/3), 320V (III/2), and 630V (II/2), and a rated impulse voltage of 4kV across these categories. The rated current is 14A according to IEC/EN standards. Under UL 1059 and UL 1977, it has a rated voltage of 300V for Use Group B and D, with rated currents of 15A for Use Group B and 10A for Use Group D, and a 600V rating under UL 1977. CSA approvals mirror the UL ratings for voltage and current. The connector features 16 connection points, supports a single connection type across one level, utilizing CAGE CLAMP technology with an operating tool for actuation. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific capacities for ferruled conductors. The physical dimensions include a pin spacing of 5.08mm, width of 83.68mm, height of 23.9mm, and depth of 22.75mm. It is designed with angled orientation, variable coding, and anti-rotation protection but lacks mismating protection and locking features. The connector is orange, made from Polyamide (PA66) with a V0 flammability class, and uses Chrome-Nickel spring steel for the clamping spring and a copper alloy with tin plating for contacts. It operates within a temperature range of -60 to +85°C, has a fire load of 0.009MJ, and weighs 29.8g. This product is RoHS compliant, packaged in boxes of 25 pieces, and manufactured in Poland with a GTIN of 4044918386166.
