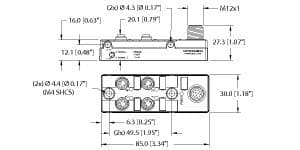

TB-4M8Z-4-FS12 Turck I/O Junction Boxes

Name: TB-4M8Z-4-FS12
Brand: Turck

Turck TB-4M8Z-4-FS12 TB-4M8Z-4-FS12 M8 snap, 4 pole I/O port with M12 homerun

Part#:TB-4M8Z-4-FS12

Manufacturer:Turck

Alt. Part#:U2-28311

Product Lifecycle:Active

Get a quick Quote!

TB-4M8Z-4-FS12 M8 snap, 4 pole I/O port with M12 homerun

About the manufacturer: Turck is one of the manufacturers that offers I/O Junction Boxes that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TB-4M8Z-4-FS12 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
89 g
Approvals
CE, RoHS
Housing material
Plastic, PA 6 GF30
Voltage
30 V
Homerun Type
M12 × 1
Homerun Exit Location
Top exit
Number of ports
4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TB-4M8Z-4-FS12 Description

Turck TB-4M8Z-4-FS12 is a passive junction box from the TB series, featuring a top-exit homerun design that supports 2 signals per port. It is constructed with a PA6-GF30 plastic housing in black and includes 4 x 4-pin M8 picofast snap connectors alongside 1 x 12-pin M12 eurofast homerun connector. This junction box operates at a supply voltage of 30Vdc and offers a connection capacity of 4-ports. It is designed for surface mounting and provides a degree of protection rated at IP67.
