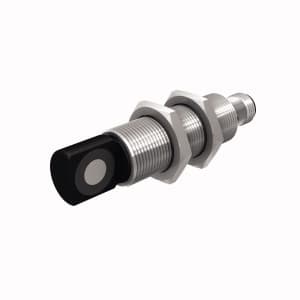

RU40L-M18MS-UP8X2-H1151 Turck Ultrasonic Sensors

Name: RU40L-M18MS-UP8X2-H1151
Brand: Turck

Turck RU40L-M18MS-UP8X2-H1151 RU40L-M18MS-UP8X2-H1151 Ultrasonic Sensor, Retroreflective Sensor

Part#:RU40L-M18MS-UP8X2-H1151

Manufacturer:Turck

Alt. Part#:1610078

Product Lifecycle:Active

Get a quick Quote!

RU40L-M18MS-UP8X2-H1151 Ultrasonic Sensor, Retroreflective Sensor

About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RU40L-M18MS-UP8X2-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
71 g
Ambient temperature
-25…+70 °C
Range
25…400 mm
Housing quality
CuZn
Housing surface
Nickel Plated
Special features
Compact
Protection class
IP67
Housing material
Metal
Design
Threaded barrel
Electrical connection
Connector, M12 × 1
Construction size
M18 x 1
Operating voltage
15…30 VDC
Output function
PNP
Switching element function
NO/NC
Radiation direction
side
Function
Retroreflective

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RU40L-M18MS-UP8X2-H1151 Description

Turck RU40L-M18MS-UP8X2-H1151 is an ultrasonic sensor from the RU40L series, designed with a 9° sonic cone in a retro-reflective mode for side sensing. This sensor features ultrasonic sensor TEACH-by-wire functionality and is constructed with a chrome-plated brass housing and a sensing face made of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. The sensor operates on a supply voltage of 15-30Vdc, with a nominal voltage of 24Vdc, and can function within an ambient air temperature range of -25°C to +70°C. It offers a degree of protection rated at IP67 and has a partially threaded medium length cylindrical/barrel shape with an M18 thread size. The digital output is 1 x digital output (10.8-30Vdc; PNP; 150mA max.), and it has a sensing distance of 25-400mm. The current consumption is 50mA under no-load conditions, and it features a maximum switching frequency of 5.2Hz. Protection functions include short-circuit (pulsed) and reverse polarity. The operating mode can be programmed as NO (Normally Open) or NC (Normally Closed). The transmission frequency is set at 300kHz / 0.3 MHz, with a control circuit rated current of 50mA / 0.05 A.
