WK 4.4T-0.5-P7X2/S653 Turck Industrial Automation Components

WK 4.4T-0.5-P7X2/S653 on Powermatic Associates
Turck

Part#:WK 4.4T-0.5-P7X2/S653

Manufacturer:Turck

Alt. Part#:U-92417

Product Lifecycle:Active

Get a quick Quote!

WK 4.4T-0.5-P7X2/S653 Actuator and Sensor Cordset, Connection Cordset

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the WK 4.4T-0.5-P7X2/S653 Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WK 4.4T-0.5-P7X2/S653 Description

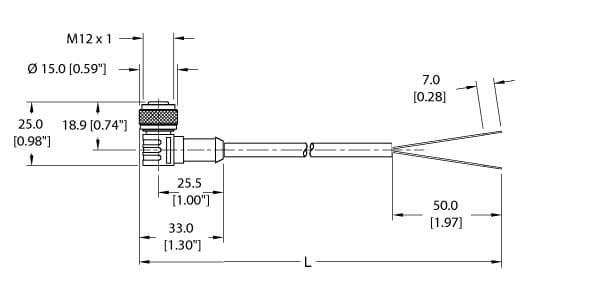

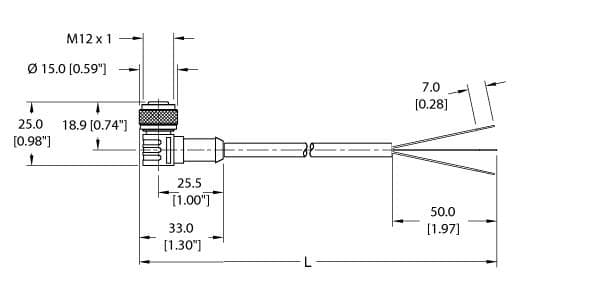

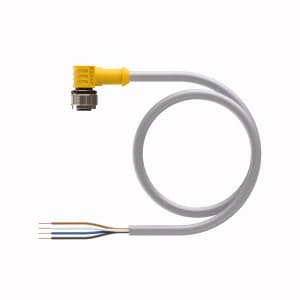

Turck WK 4.4T-0.5-P7X2/S653 is a single-ended mating cable/cordset designed for automation applications. This part features a right-angled 4-pin M12 eurofast female connector with a T-barb fitting and bare end flying leads. It is constructed with a nickel-plated brass coupling nut and a PVC jacket, ensuring durability. The cable has a length of 50cm (19 inches) and includes a cross-section of 4 x #22AWG. It is rated for a current of 4A and has a cable sheath outer diameter of 5.3mm. The rated voltage is 30Vac for AC and 10-30Vdc for DC, with a nominal voltage of 24Vdc. The cable's sheath is gray, and it contains BN/WH/BU/BK wires. It is designed for a 3-wire connection and includes 2 x sourcing/PNP indicator LEDs for signal and power, along with a foil shield and drain wire connected to the pin. The degree of protection provided is IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, indicating a high level of protection against environmental factors. This part belongs to the M12 eurofast to bare leads sub-range.

Related documents WK 4.4T-0.5-P7X2/S653 Specs

WK 4.4T-0.5-P7X2/S653 777007056 (sheet_1).pdf

Manufacturer warranty

$38.80

Request a quote, and we will send availability within minutes.

Select Qty:

$38.80

$38.80 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
