PSG 5M-1/S90 Turck Cordsets

Name: PSG 5M-1/S90
Brand: Turck

Turck PSG 5M-1/S90 PSG 5M-1/S90 Actuator and Sensor Cordset, Connection Cable

Part#:PSG 5M-1/S90

Manufacturer:Turck

Alt. Part#:U-92909

Product Lifecycle:Active

Get a quick Quote!

PSG 5M-1/S90 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PSG 5M-1/S90 Turck price in the box on the right side or send a quick quote.

Product Details

Approvals
UL Listed, CSA, CE, RoHS
Cable length (L)
1.0 m
Cable Jacket Material
TPU
Number of Conductors
5
Voltage
30 V
Connector A - Number of Pins
5
Material coupling/housing A
Brass
Cable Jacket Color
Black
Connector A
M8 × 1
Application
Actuator and Sensor
Current
3 A
Connector A - Style
Straight, Male

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PSG 5M-1/S90 Description

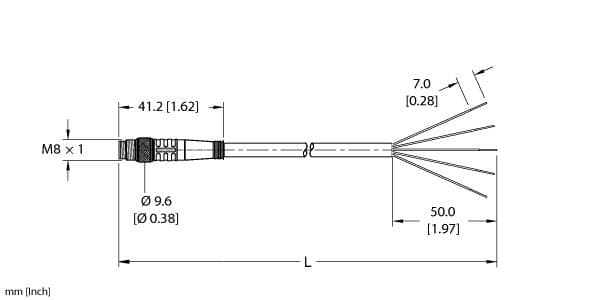

Turck PSG 5M-1/S90 is a single-ended mating cable/cordset designed for automation applications. It features a 4.5mm cable sheath outer diameter and is equipped with a 5-pin M8 picofast male connector (M8x1 threaded coupling nut) with bare end flying leads. This part falls under the M8 picofast to bare leads sub-range and offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The coupling nut is made from nickel-plated brass, and the cable jacket is constructed from TPU, ensuring durability. It operates with a rated current of 3A and supports both 30Vdc and 30Vac rated voltages. The cable, in a black sheath, measures 1 meter (approximately 3 feet) in length and has a cross-section of 5 x #24AWG.
