RU300U-M30E-2UP8X2T-H1151 Turck Ultrasonic Sensors

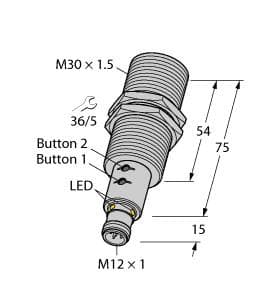

Turck RU300U-M30E-2UP8X2T-H1151 is an ultrasonic sensor from the RU300U series, designed with a 15° sonic cone adjustable TEACH button in a diffuse mode for front sensing. This sensor features ultrasonic TEACH-by-wire/button and window mode programmability. It is constructed with a chrome-plated brass housing and a sensing face made of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. The sensor is pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. It operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -25°C to +70°C. The RU300U-M30E-2UP8X2T-H1151 offers an IP67 degree of protection and comes in an M30 partially threaded extended cylindrical/barrel shape. It features 2 digital outputs (10.8-30Vdc; PNP) and has a sensing distance of 300-3000mm. The maximum switching frequency is 3.3Hz, and it includes protection functions against short-circuit (pulsed) and reverse polarity. The operating mode is programmable to be either NO (Normally Open) or NC (Normally Closed). The thread size is M30, with a transmission frequency of 120kHz / 0.12 MHz, and it boasts a measurement accuracy (resolution) of 1mm. The control circuit is rated for a current of 50mA / 0.05 A.
