RU300U-M30E-LIU2PN8X2T-H1151 Turck Ultrasonic Sensors
Part#:RU300U-M30E-LIU2PN8X2T-H1151
Manufacturer:Turck
Alt. Part#:1610048
Product Lifecycle:Active
Get a quick Quote!

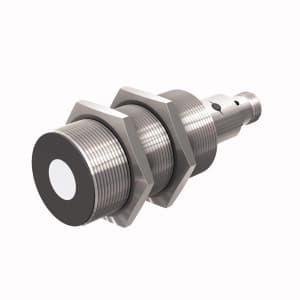

RU300U-M30E-LIU2PN8X2T-H1151 Ultrasonic Sensor, Diffuse Mode Sensor
About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RU300U-M30E-LIU2PN8X2T-H1151 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 160 g
- Protection class IP67
- Special features Synchronization, Pushbutton
- Ambient temperature -25…+70 °C
- Communication protocol IO-Link
- Housing quality CuZn
- Housing surface Nickel Plated
- Electrical connection Connector, M12 × 1
- Current output 4…20 mA
- Housing material Metal
- Switching element function NO/NC
- Function Proximity
- Voltage output 0…10 V
- Output function PNP/NPN, analog output
- Design Threaded barrel
- Construction size M30 x 1.5
- Radiation direction straight
- Range 300…3000 mm
- Operating voltage 15…30 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RU300U-M30E-LIU2PN8X2T-H1151 Description

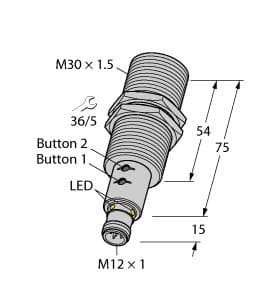

Turck RU300U-M30E-LIU2PN8X2T-H1151 is an ultrasonic sensor from the RU300U series featuring a 15° sonic cone adjustable TEACH button in a diffuse mode for front sensing. It is designed with a chrome-plated brass housing and a sensing face made of PET, PU, and Epoxy, ensuring durability. This sensor is equipped with a 5-pin M12 Eurofast QD male connector for easy connection and operates on a supply voltage of 15-30Vdc, with 24Vdc nominal. It can function within an ambient air temperature range of -25°C to +70°C and offers a degree of protection rated at IP67. The sensor's shape is an M30 partially threaded extended cylindrical/barrel, supporting IO-Link communication protocol. It features 1 digital output (15-30Vdc; NPN/PNP) and 1 analog output (4-20mA / 0-10Vdc), with a sensing distance of 300-3000mm. The current consumption is 50mA under no-load conditions, and it has a maximum switching frequency of 3.3Hz. The sensor includes protection functions against short-circuit (pulsed) and reverse polarity, with an operating mode that is programmable as NO (Normally Open) or NC (Normally Closed). The thread size is M30, and it operates at a transmission frequency of 120kHz / 0.12 MHz, with a measurement accuracy (resolution) of 1mm and a control circuit rated current of 50mA / 0.05 A.
Related documents RU300U-M30E-LIU2PN8X2T-H1151 Specs
