RU130U-M18E-LIU2PN8X2T-H1151 Turck Ultrasonic Sensors
Part#:RU130U-M18E-LIU2PN8X2T-H1151
Manufacturer:Turck
Alt. Part#:1610026
Product Lifecycle:Active
Get a quick Quote!
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 1300 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Teach range adjustable via pushbutton or adapter, Temperature compensation, Blind zone: 15 cm, Range: 130 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±16 °, 1 × switching output, PNP/NPN, 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN, NO/NC programmable, Transmission of process value and parametrization via IO
About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RU130U-M18E-LIU2PN8X2T-H1151 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 90 g
- Special features Synchronization, Pushbutton
- Housing surface Nickel Plated
- Protection class IP67
- Housing quality CuZn
- Ambient temperature -25…+70 °C
- Housing material Metal
- Communication protocol IO-Link
- Electrical connection Connector, M12 × 1
- Current output 4…20 mA
- Voltage output 0…10 V
- Switching element function NO/NC
- Output function PNP/NPN, analog output
- Radiation direction straight
- Operating voltage 15…30 VDC

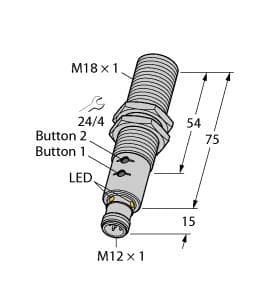

- Construction size M18 x 1
- Design Threaded barrel
- Range 150…1300 mm
- Function Proximity
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RU130U-M18E-LIU2PN8X2T-H1151 Description
Turck RU130U-M18E-LIU2PN8X2T-H1151 is an ultrasonic sensor from the RU130U series, featuring a 16° sonic cone adjustable TEACH button in a diffuse mode for front sensing. It is designed with a chrome-plated brass housing and a sensing face made of PET, PU, and Epoxy, ensuring durability and compatibility with various environments. This sensor is equipped with a 5-pin M12 Eurofast QD male connector for easy and secure connection. It operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -25°C to +70°C. With an IP67 degree of protection, it is well-suited for harsh conditions. The sensor's shape is an M18 partially threaded extended cylindrical/barrel, supporting IO-Link communication protocol for efficient data exchange. It offers one digital output (15-30Vdc; NPN/PNP) and one analog output (4-20mA / 0-10Vdc), with a sensing distance of 150-1300mm and a maximum switching frequency of 6.9Hz. The current consumption is 50mA under no-load conditions, and it operates at a transmission frequency of 200kHz. The sensor provides measurement accuracy with a resolution of 1mm and includes protection functions against short-circuit (pulsed) and reverse polarity. Its operating mode can be programmed as NO (Normally Open) or NC (Normally Closed), and it has a control circuit rated current of 50mA.
