RI90P1-QR20-LU4X2-0.15-DT04-3P Turck Encoders
Part#:RI90P1-QR20-LU4X2-0.15-DT04-3P
Manufacturer:Turck
Alt. Part#:100000183
Product Lifecycle:Active
Get a quick Quote!
RI90P1-QR20-LU4X2-0.15-DT04-3P Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI90P1-QR20-LU4X2-0.15-DT04-3P Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 111 g
- Country Of Origin DEU
- HTS Code 8536507000
- Voltage output 0.5…4.5 V
- Electrical connection Cable with connector, Deutsch DT04-3P
- Protection class IP68/IP69K
- Housing material Plastic, Ultem
- Cable length (L) 0.220 m
- Ambient temperature -40…+85 °C
- Output function Analog output
- Measuring range -45…45°
- Encoder line Premium-Line
- Shaft Type Blind hole shaft
- Technology Contactless
- Flange type Flange without mounting element
- Operating voltage 8…30 VDC

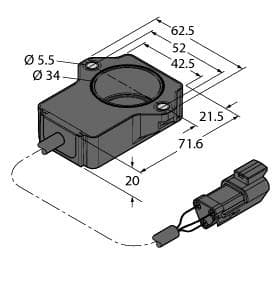

- Construction size 71.6 x 62.6 x 20 mm
- Output type Absolute singleturn
- Shaft diameter D [mm] 6 mm6.35 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI90P1-QR20-LU4X2-0.15-DT04-3P Description
Turck RI90P1-QR20-LU4X2-0.15-DT04-3P is a contactless rotary inductive angle sensor designed for precise angle measurement. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft that is washdown-resistant, making it suitable for harsh environments. This sensor is pre-wired with a 15cm pigtail that terminates with a Deutsch DT04 connector, belonging to the Q-track QR20 series. It has dimensions of H63mm x W72mm x D20mm and offers a high degree of protection with ratings of IP68 and IP69K. The supply voltage requirement is between 8Vdc and 30Vdc, with a nominal range of 12Vdc to 24Vdc. Its rectangular shape is constructed from a plastic Ultem housing, and it includes a 6mm bore size. The sensor provides protection against short-circuit and reverse polarity incidents. It features 1 x analog output ranging from 0.5Vdc to 4.5Vdc, with a resolution of ≤0.09° or 12-bit resolution. A green LED serves as a multifunction visual position indicator, and another green LED indicates power ON. The sensor's measurement accuracy is supported by a 0.09° resolution and a current consumption of 100mA, capable of detecting angular positions from 0° to +90° with an 800Hz sampling rate.
Related documents RI90P1-QR20-LU4X2-0.15-DT04-3P Specs
