RI60P2-QR20-LI2X2-H1141 Turck Encoders

Turck RI60P2-QR20-LI2X2-H1141 RI60P2-QR20-LI2X2-H1141 Miniature Encoder, With Analog Output, Premium Line
Turck

Part#:RI60P2-QR20-LI2X2-H1141

Manufacturer:Turck

Alt. Part#:100004597

Product Lifecycle:Active

Get a quick Quote!

RI60P2-QR20-LI2X2-H1141 Miniature Encoder, With Analog Output, Premium Line

About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI60P2-QR20-LI2X2-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    160 g
  • Ambient temperature
    -25…+70 °C
  • Current output
    4…20 mA
  • Electrical connection
    Connector, M12 × 1
  • Housing material
    Plastic, Ultem
  • Protection class
    IP68/IP69K
  • Output function
    Analog output
  • Operating voltage
    15…30 VDC
  • Flange type
    Flange without mounting element

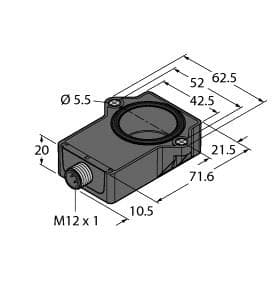

  • Construction size
    71.6 x 62.6 x 20 mm
  • Measuring range
    -30…30°
  • Shaft Type
    Blind hole shaft
  • Shaft diameter D [mm]
    6  mm6.35  mm
  • Encoder line
    Premium-Line
  • Technology
    Contactless
  • Output type
    Absolute singleturn

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI60P2-QR20-LI2X2-H1141 Description

Turck RI60P2-QR20-LI2X2-H1141 is a contactless rotary inductive angle sensor designed for precise angle measurement. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft that is washdown-resistant, making it suitable for harsh environments. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for easy installation. As part of the Q-track QR20 series, it has dimensions of H63mm x W72mm x D20mm and offers a high degree of protection with IP68 and IP69K ratings. The sensor operates on a supply voltage of 15Vdc to 30Vdc, with a nominal 24Vdc, and is housed in a rectangular, plastic Ultem casing. It provides a sampling rate of 500Hz and includes a 1/4" bore size. The RI60P2-QR20-LI2X2-H1141 features protection against short-circuit and reverse polarity, and it offers one analog output (4-20mA) with a resolution of ≤0.09° or 12-bit resolution. A green LED serves as both a multifunctional visual position indicator and a power-on indicator. The sensor ensures a measurement accuracy with a 0.09° resolution and has a current consumption of 100mA, capable of measuring angular positions from 0° to +60°.

Related documents RI60P2-QR20-LI2X2-H1141 Specs

RI60P2-QR20-LI2X2-H1141 English.pdf
