RI-12H12T-2B256-H1181 Turck Position Sensors

RI-12H12T-2B256-H1181 on Powermatic Associates

Turck

Part#:RI-12H12T-2B256-H1181

Manufacturer:Turck

Alt. Part#:200001028

Product Lifecycle:Active

Get a quick Quote!

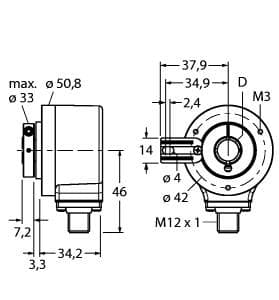

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Flange with torque stop, Ø 50.8 mm, Hollow shaft, Ø 12 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz

About the manufacturer: Turck is one of the manufacturers that offers Position Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI-12H12T-2B256-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

Country Of Origin
USA
HTS Code
9031499000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents RI-12H12T-2B256-H1181 Specs

RI-12H12T-2B256-H1181 edb_200001028_eng_us.pdf

Manufacturer warranty

$390.00

Request a quote, and we will send availability within minutes.

Select Qty:

$390.00

$390.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
