PSG 4M-6 Turck Cordsets

Name: PSG 4M-6
Brand: Turck
Price: 31.5 USD
Availability: BackOrder

Part#:PSG 4M-6

Alt. Part#:U99-11359

Manufacturer:Turck

Category:Cordsets

Product Lifecycle:Active

Product description

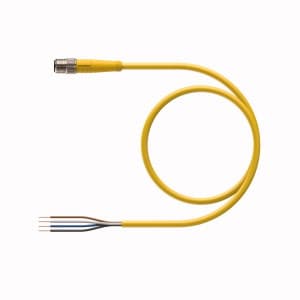

PSG 4M-6 Turck - PSG 4M-6 Actuator and Sensor Cordset, Connection Cable

Product Details

Type
Cordsets
Gauge
26 AWG
Number of conductors
4
RoHS
Yes
Series
M8 picofast
Cable Length
6 m
Country Of Origin
MEX
HTS Code
8544429090
Connector 1 - Configuration
Straight
Connector 1 - Type
Male Connector
Connector 1 - Size
M8
Connector 1 - Pins
4
Voltage
125 volts
Length
6.0 meters
Cable length (L)
6.0 m
Cable Jacket Color
Yellow
Approvals
UL Listed, CSA, CE, RoHS
Cable Jacket Material
PVC
Connector A
M8 × 1
Connector A - Number of Pins
4

Number of Conductors

Application

Actuator and Sensor

Current

2 amperes

Connector A - Style

Straight, Male

Material coupling/housing A

Brass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PSG 4M-6 on Powermatic Associates is $31.50. Order now.

About the product

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 6 m, M8, Male, Straight, 4-pin, Threaded Connector, General Purpose Cable, Yellow PVC jacket, 4X26 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 6 m

PSG 4M-6 Related Documents

edb_U99-11359_eng_us.pdf
