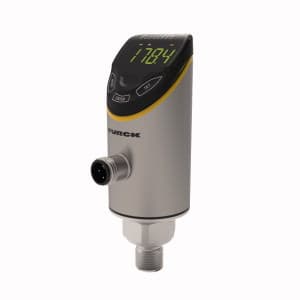

PS510-16V-03-LI2UPN8-H1141 Turck Pressure Sensors
Part#:PS510-16V-03-LI2UPN8-H1141
Manufacturer:Turck
Alt. Part#:100001539
Product Lifecycle:Active
Get a quick Quote!
PS510-16V-03-LI2UPN8-H1141 Pressure Sensor, Relative Pressure: -1…16 Bar
About the manufacturer: Turck is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the PS510-16V-03-LI2UPN8-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 283 g
- Housing material Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV
- Ambient temperature -40…+80 °C
- Electrical connection Connector, M12 × 1
- Communication protocol IO-Link
- Medium temperature -30…+80 °C
- Protection class IP6K6K / 6K7 / 6K9K
- Design With display
- Current output 4…20 mA
- Voltage output 0…10 V
- Relative pressure bar -1…16 bar rel.
- Electrical output Current output (3-wire), 2 × switching output
- Relative pressure psi -14.5…232.06 psi rel.
- Operating voltage 18…33 VDC
- Process connection 1/4” NPT male thread
- Pressure type Relative pressure
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PS510-16V-03-LI2UPN8-H1141 Description
Turck PS510-16V-03-LI2UPN8-H1141 is a sensor designed for pressure measurement within a range of 0 to +16bar. It features a programmable compound pressure sensor from the PS+ series, capable of operating in ambient air temperatures ranging from -40°C to +80°C. This sensor is equipped with a 4-pin M12 Eurofast QD male connector and a G1/4" (1/4" BSPP) threaded female process port for connection. It offers a cylindrical body shape, constructed from 1.4404 (316L) stainless steel for both the housing and measuring cell, ensuring durability. The device operates with a supply voltage of 18-30Vdc (24Vdc nom.) and can function in either NO (Normally Open) or NC (Normally Closed) modes, which are programmable. It includes 1 x analog output (4-20mA / 0-10Vdc; can also be used as a NPN/PNP digital output), with a maximum switching frequency of 300Hz. The sensor's measurement accuracy includes a setpoint hysteresis ≥0.5% analog / setpoint accuracy of +/-0.5% FS (of full scale) or +/-0.25% FS (of full scale), and it is protected to a degree of IP66.
Related documents PS510-16V-03-LI2UPN8-H1141 Specs
