PKWV 4M-10/S90/S618/S1057 Turck Cordsets

Turck PKWV 4M-10/S90/S618/S1057 PKWV 4M-10/S90/S618/S1057
Turck

Part#:PKWV 4M-10/S90/S618/S1057

Manufacturer:Turck

Alt. Part#:U-81338

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

PKWV 4M-10/S90/S618/S1057

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKWV 4M-10/S90/S618/S1057 Turck price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKWV 4M-10/S90/S618/S1057 Description

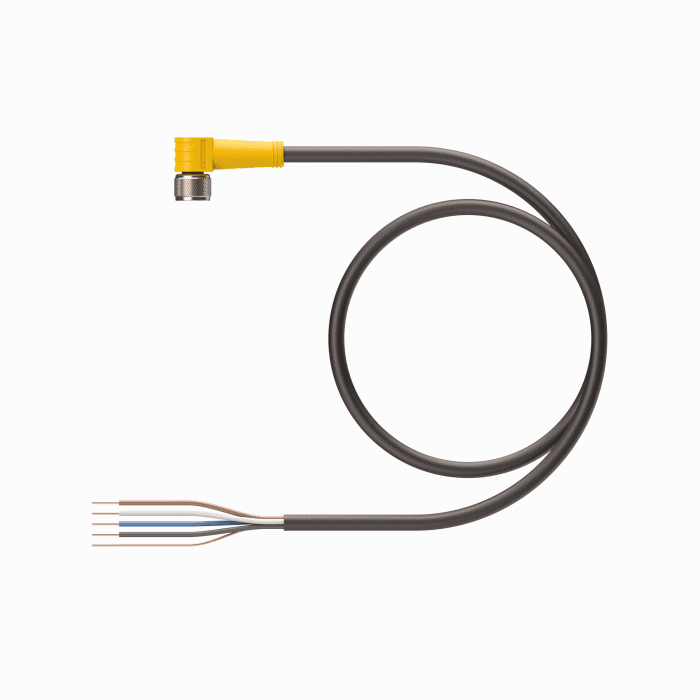

Turck PKWV 4M-10/S90/S618/S1057 is a single-ended mating cable/cordset designed for various automation applications. It features a right-angled 4-pin M8 picofast female connector with an M8x1 threaded stainless steel coupling nut and bare end flying leads. The cable has a diameter of 4.4mm with a PVC jacket in yellow color, ensuring visibility and durability. It is 15 meters (49 feet) in length, with a cross-section of 4 x #26AWG, suitable for a rated current of 2A and a rated voltage of 125Vac. This part falls under the M8 picofast to bare leads sub-range and offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for a variety of environmental conditions.

Related documents PKWV 4M-10/S90/S618/S1057 Specs

PKWV 4M-10/S90/S618/S1057 777034186 (sheet_1).pdf

This item can ship within 24h!

Manufacturer warranty

$78.10

Stock:

1

Select Qty:

$78.10

$78.10 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
