NI75U-CP80-AP6X2-B1141 Turck Inductive Sensors

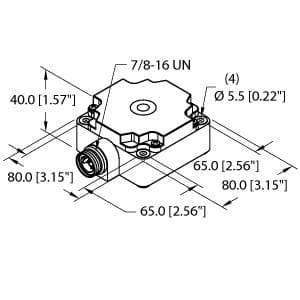

Turck NI75U-CP80-AP6X2-B1141 NI75U-CP80-AP6X2-B1141 Inductive Sensor, With Increased Switching Distance
Turck

Part#:NI75U-CP80-AP6X2-B1141

Manufacturer:Turck

Alt. Part#:1623892

Product Lifecycle:Active

Get a quick Quote!

NI75U-CP80-AP6X2-B1141 Inductive Sensor, With Increased Switching Distance

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI75U-CP80-AP6X2-B1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Special features
    uprox+, Factor 1, Resistant to magnetic fields
  • Protection class
    IP67
  • Design
    Rectangular
  • Mounting
    Non-flush
  • Electrical connection
    Connector, 7/8″
  • Ambient temperature
    -30…+85 °C
  • Construction size
    80 x 80 x 41 mm, CP80
  • Housing material
    Plastic, PBT-GF30-V0
  • Operating voltage
    10…30 VDC
  • Output function
    NO contact, PNP
  • Rated switching distance
    75 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI75U-CP80-AP6X2-B1141 Description

Turck NI75U-CP80-AP6X2-B1141 is an inductive proximity sensor designed for detecting the presence of metal objects without contact. It operates within an ambient air temperature range of -30°C to +85°C and is equipped with a 4-pin 7/8"-16 UN Minifast male connector for connection. This sensor is part of the NI...-CP80 series and features a rectangular body measuring H80mm x W80mm, known as Combiprox, with a terminal chamber. It offers a protection degree of IP67, making it suitable for harsh environments. The supply voltage required for operation is 10-30Vdc, with nominal values of 12Vdc and 24Vdc. It has a maximum switching frequency of 250Hz and is constructed from PBT-GF30-V0, a glass fiber reinforced Polybutylene Terephthalate, for both the housing and the sensing face. The sensing distance is 75mm, and it operates in a Normally Open (NO) mode. It features 1 x digital output (10-30Vdc; PNP; 200mA max.) and includes protection functions against short-circuit (pulsed), overload, and reverse polarity. The current consumption is 15mA under no-load conditions.

Related documents NI75U-CP80-AP6X2-B1141 Specs

NI75U-CP80-AP6X2-B1141 English.pdf

Manufacturer warranty

$413.30

Request a quote, and we will send availability within minutes.
