LI800P1-Q25LM1-LIU5X3-H1151 Turck Linear Position Sensors

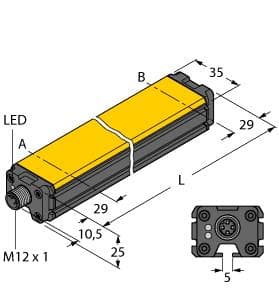

Turck LI800P1-Q25LM1-LIU5X3-H1151 is an encoder (linear) from the Q-track Q25 series, designed as a contactless linear inductive positioning sensor. It features a 68mm long mounting foot captive positioning element, with dimensions of H35mm x W25mm x D858mm, and a rectangular shape. The housing is made of anodized aluminum and plastic PA6-GF30, including the active area and sensing face. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. The encoder offers protection against short-circuit, wire-break, and reverse polarity. It operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.) and can function in ambient air temperatures ranging from -25 to +70°C. With an IP67 degree of protection, it features a stroke length with 29mm blind zones at both ends, a 1.5mm nominal distance, and an 800mm measurement span. The analog output is 1 x analog (0-10Vdc / 4-20mA; 12-bit resolution), with a current consumption of 50mA and a 500Hz sampling rate. Measurement accuracy is detailed with a 16-bits resolution (≤ 0.013mm / 13μm linear resolution), ≤ 0.02% of full scale repeatability, ≤ +/-0.003% / K temperature drift, and ≤ 0.1% of full scale linearity deviation. Visual position indicators include green / yellow / yellow flashing LED for multifunction and a green LED for power ON, with a resolution of 16-bit.
