LI800P0-Q25LM0-ELIU5X3-H1151 Turck Linear Position Sensors
Part#:LI800P0-Q25LM0-ELIU5X3-H1151
Manufacturer:Turck
Alt. Part#:100001939
Product Lifecycle:Active
Get a quick Quote!
LI800P0-Q25LM0-ELIU5X3-H1151 Inductive Linear Position Sensor
About the manufacturer: Turck is one of the manufacturers that offers Linear Position Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the LI800P0-Q25LM0-ELIU5X3-H1151 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 1240 g
- Ambient temperature -25…+70 °C
- Housing material Aluminum/plastic, PA6-GF30, Anodized
- Protection class IP66/IP67
- Measuring principle Inductive
- Electrical connection Connector, M12 × 1
- Voltage output 0…10 V
- Measuring range 800 mm [31.50 in]
- Operating voltage 15…30 VDC
- Current output 4…20 mA
- Output function Analog output
- Design Profile
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
LI800P0-Q25LM0-ELIU5X3-H1151 Description

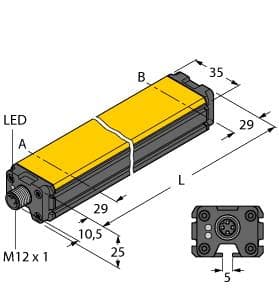

Turck LI800P0-Q25LM0-ELIU5X3-H1151 is an encoder (linear) from the Q-track Q25 series, designed as a contactless linear inductive positioning sensor with increased resolution. It features dimensions of H35mm x W25mm x D858mm and a rectangular shape. The housing is made of anodized aluminum and plastic PA6-GF30, including the active area and sensing face. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. This part offers protection functions against short-circuit, wire-break, and reverse polarity. It operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.) and can function in ambient air temperatures ranging from -25 to +70°C. With an IP67 degree of protection, it is designed for durability in various environments. The stroke length includes a 29mm blind zone at both ends, a 1.5mm nominal distance, and an 800mm measurement span. It provides an analog output (0-10Vdc / 4-20mA; 16-bit resolution), consumes 50mA of current, and has a 5kHz / 5000Hz sampling rate. The measurement accuracy is detailed with a 16-bits resolution (equivalent to 0.013mm / 13μm linear resolution), ≤ 0.02% of full scale repeatability, ≤ +/-0.003% / K temperature drift, and ≤ 0.1% of full scale linearity deviation. Visual position indicators include green / yellow / yellow flashing LED for multifunctional purposes and a green LED to indicate power ON.
Related documents LI800P0-Q25LM0-ELIU5X3-H1151 Specs
