ERSBG-A5.500.2-2 Turck Panel-Mount Receptacles

Turck ERSBG-A5.500.2-2 ERSBG-A5.500.2-2 Actuator and Sensor Receptacle, Rear Mount
Turck

Part#:ERSBG-A5.500.2-2

Manufacturer:Turck

Alt. Part#:100012222

Product Lifecycle:Active

In-stock parts: 6

Sep 28, 2024

ERSBG-A5.500.2-2 Actuator and Sensor Receptacle, Rear Mount

About the manufacturer: Turck is one of the manufacturers that offers Panel-Mount Receptacles that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the ERSBG-A5.500.2-2 Turck price in the box on the right side or send a quick quote.

Product Details

  • Current
    4 A
  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Mounting Thread A
    PG9
  • Material coupling/housing A
    Brass
  • Connector A - Style
    Male
  • Connector A - Number of Pins
    5
  • Connector A
    M12 × 1
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

ERSBG-A5.500.2-2 Description

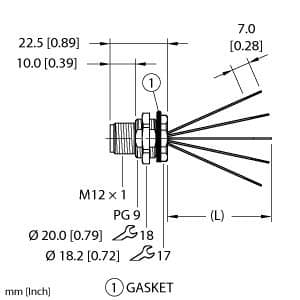

Turck ERSBG-A5.500.2-2 is a connector (receptacle) designed for panel-mount applications, featuring a nickel-plated brass housing for durability. It falls within the M12 eurofast to bare leads sub-range, equipped with a 5-pin M12 eurofast male receptacle and Pg9 panel-mounting thread for secure installation. The connector has bare end flying leads, with a total length of 2 meters (approximately 6 feet). It is rated for a current of 4A, suitable for various industrial automation connections.

Related documents ERSBG-A5.500.2-2 Specs

ERSBG-A5.500.2-2 English.pdf
