RS 4.5T-1.5 Turck Cordsets

Name: RS 4.5T-1.5
Brand: Turck
Price: 30.6 USD
Availability: InStock

Turck RS 4.5T-1.5 RS 4.5T-1.5 Actuator and Sensor Cordset, Connection Cable

Part#:RS 4.5T-1.5

Manufacturer:Turck

Alt. Part#:U0893-86

Product Lifecycle:Active

In-stock parts: 14

Sep 28, 2024

RS 4.5T-1.5 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RS 4.5T-1.5 Turck price in the box on the right side or send a quick quote.

Product Details

Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable length (L)
1.50 m
Connector A - Style
Straight, Male
Cable Jacket Color
Gray
Voltage
250 V
Cable Jacket Material
PVC
Material coupling/housing A
Brass
Connector A
M12 × 1
Connector A - Number of Pins
5
Number of Conductors
5
Current
4 A
Application
Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RS 4.5T-1.5 Description

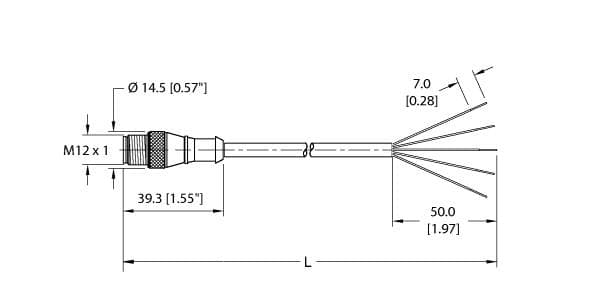

Turck RS 4.5T-1.5 is a single-ended mating cable/cordset designed for automation applications, featuring a 5-pin M12 eurofast male connector with T-barb fitting to bare end flying leads. This cable is constructed with a nickel-plated brass coupling nut and a PVC jacket, ensuring durability and longevity. The cable sheath has an outer diameter of 5.7mm and the cable length is 1.5 meters (approximately 4 feet). It is designed to operate with a rated current of 4A and has a cross-section of 5 x #22AWG. The RS 4.5T-1.5 is encased in a gray sheath and offers a degree of protection rated at IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for a wide range of environmental conditions.
