BLCDN-4M12MT-8XSG-PD Turck I/O Modules

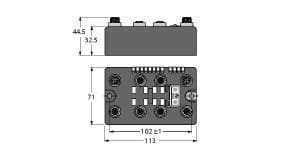

Turck BLCDN-4M12MT-8XSG-PD is a remote I/O controller within the BL compact series, designed with auxiliary power and deluxe diagnostics for DeviceNet medium housing. It operates on a 24Vdc supply voltage and features a fiberglass reinforced nylon housing with nickel-plated brass connectors. This model includes 4 x 5-pin M12 female connectors for I.O. ports, 2 x 5-pin M12 female connectors for FIELDBUS, and 2 x 4-pin M12 connectors (male + female) for voltage supply. It offers an IP67 and IP69K degree of protection and is designed for surface mounting. The communication protocol supported is DeviceNet. The unit has dimensions of 113 mm in height, 44.5 mm in depth, and 71 mm in width. It is capable of operating in ambient air temperatures ranging from -40 to +70°C. The connection capacity is 4-ports, with 8 x digital inputs (PNP; these inputs can also be configured as 8DO digital outputs with a maximum of 500mA). The supported communication speeds are 125kbps, 250kbps, and 500kbps.
