BL67-GW-DPV1 Turck I/O Modules

Turck BL67-GW-DPV1 BL67-GW-DPV1 Gateway for BL67 I/O system, Interface for PROFIBUS-DP (DPV0/DPV1)
Turck

Part#:BL67-GW-DPV1

Manufacturer:Turck

Alt. Part#:6827232

Product Lifecycle:Active

Get a quick Quote!

BL67-GW-DPV1 Gateway for BL67 I/O system, Interface for PROFIBUS-DP (DPV0/DPV1)

About the manufacturer: Turck is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BL67-GW-DPV1 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    372 g
  • Product Family
    BL67
  • Protection class
    IP67
  • Device type
    Gateway
  • Approvals
    cULus
  • Ambient temperature
    -40…+70 °C
  • Fieldbus Protocol
    PROFIBUS-DP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BL67-GW-DPV1 Description

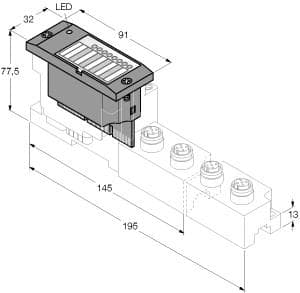

Turck BL67-GW-DPV1 is a remote I/O controller within the BL67 series, designed as a standard gateway/head with an interface for PROFIBUS-DP (DPV0/DPV1). It operates on a 24Vdc supply voltage and is encased in a polycarbonate (PC-V0) housing. This part features 2 x 5-pin M12 (male + female) connectors for FIELDBUS and a 5-pin 7/8" male connector for power. It boasts an IP67 degree of protection, making it suitable for DIN rail mounting. The BL67-GW-DPV1 supports the PROFIBUS DP communication protocol and can connect up to 32 x BL67 slices maximum. It has dimensions of 145 mm in height, 77.5 mm in depth, and 74 mm in width. The ambient air temperature for operation ranges from -40 to +70°C.

Related documents BL67-GW-DPV1 Specs

BL67-GW-DPV1 English.pdf

Manufacturer warranty

$427.90

Request a quote, and we will send availability within minutes.

Select Qty:

$427.90

$427.90 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
