BIC-44-E424 Turck Cable Accessories & Components

Turck BIC-44-E424 BIC-44-E424 Accessories for Fieldbus Systems, Wall/panel feed-through
Turck

Part#:BIC-44-E424

Manufacturer:Turck

Alt. Part#:U3-00003

Product Lifecycle:Active

Get a quick Quote!

BIC-44-E424 Accessories for Fieldbus Systems, Wall/panel feed-through

About the manufacturer: Turck is one of the manufacturers that offers Cable Accessories & Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BIC-44-E424 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    248 g
  • Fieldbus Protocol
    Ethernet
  • Device type
    Wall feedthrough

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BIC-44-E424 Description

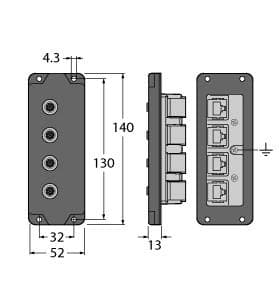

Turck BIC-44-E424 is a junction box designed for industrial Ethernet applications, featuring a black housing made from fiberglass reinforced nylon and CuZn metal contacts. It is equipped with 4 x 4-pin M12 female connectors and 4 x RJ45 connectors, supporting a supply voltage of 125Vdc. This wall/panel feed-through passive junction box offers a degree of protection of IP67, making it suitable for surface mounting. It operates within an ambient air temperature range of -30 to +75°C and has dimensions of 140 mm in height, 11.6 mm in depth, and 52 mm in width. The BIC-44-E424 facilitates Ethernet communication and has a connection capacity of 4-ports.

Related documents BIC-44-E424 Specs

BIC-44-E424 English.pdf

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
