BI5U-P18SK-AP6X Turck Inductive Sensors

Turck BI5U-P18SK-AP6X BI5U-P18SK-AP6X Inductive Sensor
Turck

Part#:BI5U-P18SK-AP6X

Manufacturer:Turck

Alt. Part#:1635700

Product Lifecycle:Active

Get a quick Quote!

BI5U-P18SK-AP6X Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI5U-P18SK-AP6X Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    52 g
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Special features
    uprox+, Factor 1, Resistant to magnetic fields
  • Protection class
    IP68
  • Operating voltage
    10…30 VDC
  • Output function
    NO contact, PNP
  • Housing material
    Plastic, PA12-GF30
  • Electrical connection
    Terminal chamber
  • Ambient temperature
    -30…+85 °C
  • Rated switching distance
    5 mm
  • Mounting
    Flush
  • Construction size
    M18 x 1
  • Design
    Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI5U-P18SK-AP6X Description

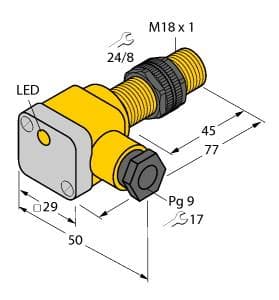

Turck BI5U-P18SK-AP6X is an inductive proximity sensor belonging to the BI...-P18 series. This sensor features a short barrel embeddable design with a supply voltage range of 10-30Vdc, including nominal values of 12Vdc and 24Vdc. It is constructed with a PA12-GF30 (glass fiber reinforced Polyamide) housing and sensing face, ensuring durability. The connection is facilitated by a pre-equipped wiring chamber terminal block and a right-angled Pg 9 entry. Its shape is defined as an M18 fully threaded barrel with a right-angle terminal chamber. The sensor offers an IP68 degree of protection against ingress, operates at a frequency of up to 3kHz, and can function within an ambient air temperature range of -30°C to +85°C. The response time is quick at 8ms, and it includes 1 x digital output (10-30Vdc; PNP; 200mA max.) for connectivity. The current consumption stands at 25mA under no-load conditions, and it has a sensing distance of 5mm. Protection features include short-circuit (pulsed), overload, and reverse polarity safeguards. The control circuit is rated at 200mA, and the thread size is M18. Its operating mode is NO (Normally Open), making it suitable for a variety of proximity sensing applications.

Related documents BI5U-P18SK-AP6X Specs

BI5U-P18SK-AP6X English.pdf

Manufacturer warranty

$168.70

Request a quote, and we will send availability within minutes.

Select Qty:

$168.70

$168.70 each
