Powermatic Associates Logo

RKF36160U44AYP Schneider Electric Industrial Automation Components

RKF36160U44AYP on Powermatic Associates
Schneider Electric

Part#:RKF36160U44AYP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

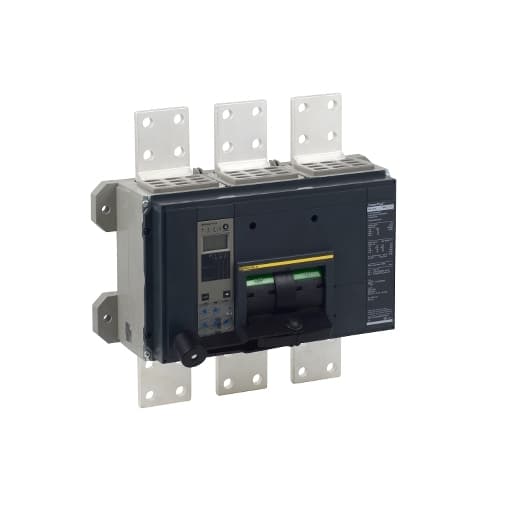

Schneider Electric - RKF36160U44AYP

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Breaking Capacity Code
    K
  • Height
    16.24 in (412.50 mm)
  • Number Of Poles
    3P
  • Depth
    14.49 in (368.05 mm)
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Width
    16.53 in (419.86 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RKF36160U44AYP Related Documents

Catalog-1631033263906.pdfInstruction Sheet-1631033263903.pdfProduct Datasheet-1631033263898.pdf
