Part#:RGF36080U44A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

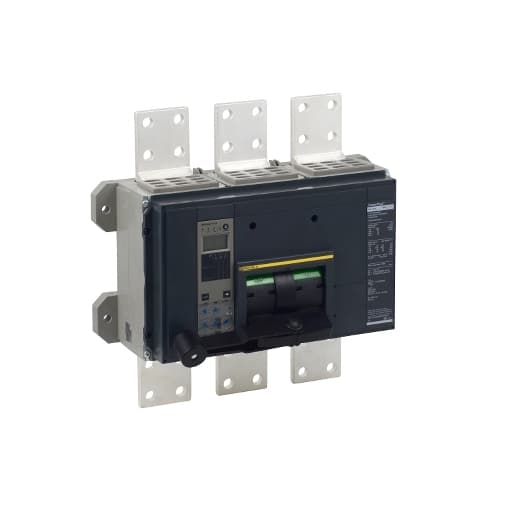

Schneider Electric - RGF36080U44A

Product Details

  • Breaking Capacity
    65 kA 240 V AC 35 kA 480 V AC 18 kA 600 V AC
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Continuous Current Rating
    80 %
  • Width
    16.53 in (419.86 mm)
  • Depth
    14.49 in (368.05 mm)
  • Height
    16.24 in (412.50 mm)
  • Breaking Capacity Code
    G
  • Trip Unit Technology
    Electronic, ammeter, Micrologic 6.0 A, LSIG
  • Poles Description
    3P
  • [Ue] Rated Operational Voltage
    600 V AC
  • Mounting Mode
    Unit mount
  • [Ie] Rated Operational Current
    800 A
  • Current Sensor Rating Range
    800 A
  • Range Of Product
    PowerPact R
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
