RGF36100U31A Schneider Electric Industrial Automation Components

RGF36100U31A on Powermatic Associates
Schneider Electric

Part#:RGF36100U31A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

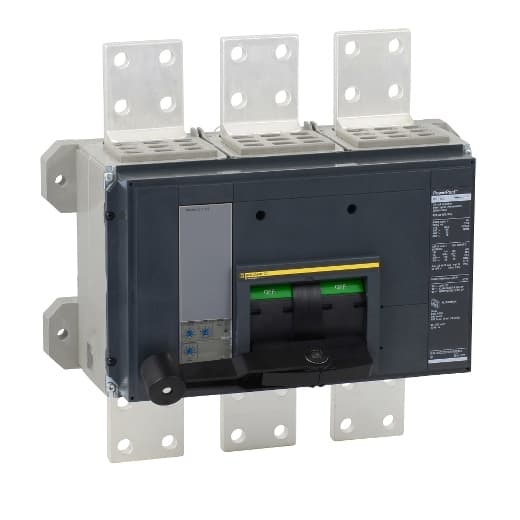

Square D by Schneider Electric RGF36100U31A is a molded case circuit breaker (MCCB) designed for mounting on a plate with a rated current of 1000A and a connection type of busbar. It falls under the PowerPact RGF sub-range and is capable of handling a rated voltage (AC) of 600V across 3 poles. This MCCB features protection functions including long-time protection (L) and instantaneous protection (I), with a trip current rating of 1000 AT and a frame current rating of 3000 AF. Its short circuit breaking rating is specified as 65kA at 240Vac, 35kA at both 480Y/277Vac and 480Vac, and 18kA at both 600Y/347Vac and 600Vac, covering all protected poles. The trip unit type equipped is the Micrologic 3.0 (LI) Electronic, ensuring precise operation under specified conditions.

Product Details

  • Breaking Capacity
    65 kA 240 V AC 35 kA 480 V AC 18 kA 600 V AC
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Height
    16.24 in (412.50 mm)
  • Depth
    14.49 in (368.05 mm)
  • Width
    16.53 in (419.86 mm)
  • Trip Unit Technology
    Electronic, standard, Micrologic 3.0, LI
  • Poles Description
    3P
  • [Ue] Rated Operational Voltage
    600 V AC
  • Product Or Component Type
    Circuit breaker
  • [Ie] Rated Operational Current
    1000 A
  • Range Of Product
    PowerPact R
  • Continuous Current Rating
    80 %
  • Mounting Mode
    Unit mount
  • Current Sensor Rating Range
    1000 A
  • Breaking Capacity Code
    G

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
