PK9GTA Schneider Electric Industrial Automation Components

PK9GTA on Powermatic Associates
Schneider Electric

Part#:PK9GTA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 18, 2025

Product description

Square D by Schneider Electric PK9GTA is a lock kit designed for locking mechanisms within electrical systems. This part is specifically crafted to ensure compatibility and integration with Square D by Schneider Electric products, facilitating secure locking functions.

Product Details

  • Conductor Material:
    Copper/Aluminum
  • Terminal Size:
    9-Terminal (1) 14 to 10 AWG (Copper)
  • Used On:
    QO Circuit Breaker and Loadcenter
  • Shipping Length:
    12.00 In.
  • Shipping Height:
    1.00 In.
  • Length:
    3.78 Inch
  • Shipping Width:
    5.00 In.
  • UPC:
    785901026396
  • Shipping Weight:
    0.10 lbs.
  • Wire Size
    AWG 14...AWG 10 copper AWG 12...AWG 10 aluminium AWG 8 aluminium/copper AWG 6...AWG 4 aluminium/copper AWG 14...AWG 12
  • Tightening Torque
    20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4
  • Bar Length
    3.78 in (96 mm)
  • Height
    0.437 in (11.10 mm)
  • Product Line
    QO
  • Depth
    0.312 in (7.92 mm)
  • Device Mounting
    Direct mounting back of enclosure
  • Number Of Connectors
    9
  • Provided Equipment
    2 screw
  • Maximum Length Of Segment
    3.15 in (80 mm)

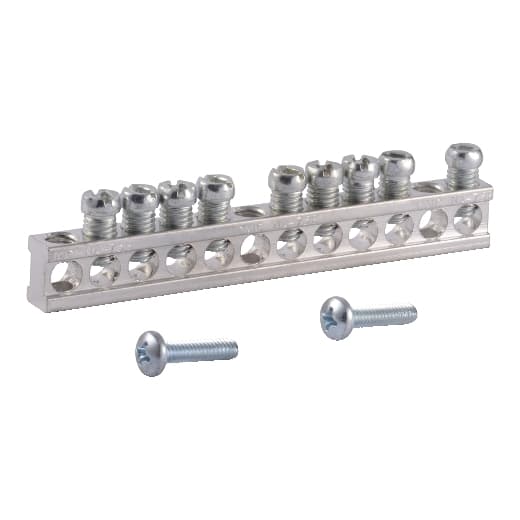

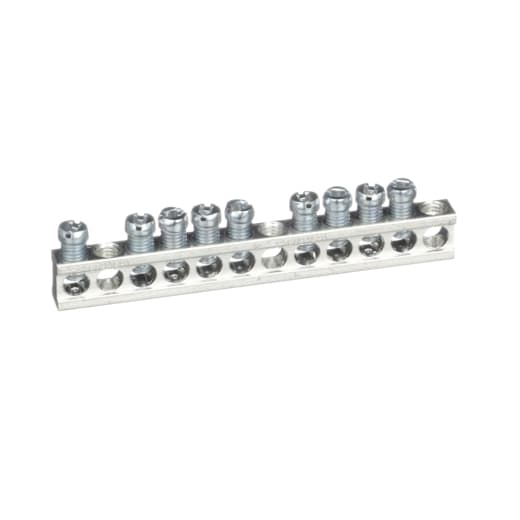

  • Product Type
    Load Center Grounding Bar Assembly

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PK9GTA on Powermatic Associates is $13.40. Order now.
