M9F21103 Schneider Electric Industrial Automation Components

M9F21103 on Powermatic Associates
Schneider Electric

Part#:M9F21103

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 15, 2025

Product description

Schneider Electric M9F21103 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 3A and is compliant with UL1077 standards. The MCB operates with a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is equipped to handle rated impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified at 14kA AIR for both 120Vac and 240Vac, and 10kA AIR for 277Vac and 65Vdc. The AC phase-to-neutral rated voltage is 277V. This product is designed to protect a single pole and features a B tripping curve.

Product Details

  • Breaking Capacity
    10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA
  • [Ics] Rated Service Breaking Capacity
    2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
  • Product Certifications
    IEC CCC UR CSA
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
  • Magnetic Tripping Limit
    4 x In +/- 20 % AC 5.7 x In +/- 20 % DC
  • Network Type
    AC DC
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • Mechanical Durability
    20000 cycles
  • Earth-Leakage Protection
    Without
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Provision For Padlocking
    Padlockable
  • Local Signalling
    ON/OFF indication
  • Mounting Mode
    Clip-on
  • Electrical Durability
    10000 cycles
  • Color
    Gray
  • Depth
    2.83 in (72 mm)
  • Width
    0.71 in (18 mm)
  • Height
    3.19 in (81 mm)
  • 9 Mm Pitches
    2
  • Mounting Support
    DIN rail
  • Control Type
    Toggle
  • Contact Position Indicator
    Yes
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Product Or Component Type
    Miniature circuit-breaker
  • Number Of Protected Poles
    1
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Poles Description
    1P
  • Curve Code
    B
  • Trip Unit Technology
    Thermal-magnetic
  • Line Rated Current
    3 A 77 °F (25 °C) EN/IEC 60947-2
  • Device Application
    Distribution
  • Device Short Name
    C60SP
  • Range
    Multi 9
  • Product Name
    Multi 9 C60

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F21103 on Powermatic Associates is $101.00. Order now.

M9F21103 Related Documents

Product Datasheet-1631031602713.pdfCatalog-1631031602716.pdf

Similar products from: Schneider Electric Industrial Automation Components

MG17444 on Powermatic Associates

MG17444

Schneider Electric

Schneider Electric MG17444 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. This 2-pole MCB is rated for a current of 5A and has an operating voltage (Ue) of 480V. It features a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 480Y/277Vac, and 10kA AIR at 125Vdc. Both poles are protected, and it utilizes a C tripping curve.

2 in stock
LC1D506G7 on Powermatic Associates

LC1D506G7

Schneider Electric

Schneider Electric LC1D506G7 is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for currents of 80A (AC-1) and 50A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and offers a degree of protection of IP20. The control voltage (AC) ranges from 96-132Vac (120Vac nominal; 50Hz; 0.8...1.1 x Uc) to 102-132Vac (120Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. Its rated active power (kW) spans from 15kW at 220-230Vac to 33kW at 660-690Vac, all in AC-3 category. The rated power (HP) varies from 3HP at 115Vac in single-phase to 40HP at 575-600Vac in three-phase, under UL/CSA standards. The mechanical durability of this contactor is rated at 15 million operations at no load, and it supports a phase-to-phase rated voltage (AC) of 690 V.

1 in stock
LC1DT20BL on Powermatic Associates

LC1DT20BL

Schneider Electric

Schneider Electric LC1DT20BL is a magnetic contactor from the Deca sub-range, designed with a low-consumption coil that uses less than 2.4W. It features screw connections for secure installation and operates with 4 poles (4NO) capable of handling a rated current of 20A under AC-1 conditions. This contactor is designed for DIN rail mounting, ensuring a compact and efficient setup with a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage range of 19.2-30Vdc, nominally at 24Vdc, which is 0.8 to 1.25 times the control voltage (Uc). The LC1DT20BL can handle a rated operating voltage (Ue) up to 690 V and is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both rated for instantaneous operation. The contacts are designed to withstand a rated impulse voltage (Uimp) of 6 kV. With mechanical durability rated at 15 million operations at no load, this contactor is built for longevity. It supports a phase-to-phase rated voltage (AC) of 690 V and maintains a power consumption of 2.4 W.

2 in stock
LC1D95G7 on Powermatic Associates

LC1D95G7

Schneider Electric

Schneider Electric LC1D95G7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 96-132Vac (120Vac nominal; 50Hz; 0.8...1.1 x Uc) to 102-132Vac (120Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. Its rated active power (kW) spans from 25kW at 220-230Vac to 45kW at up to 440Vac, reaching 55kW at 500Vac, and maintaining 45kW at 660-690Vac and 1000Vac, all in AC-3 category. The rated power (HP) varies from 7.5HP at 115Vac in single-phase to 60HP at 575-600Vac in three-phase, under UL/CSA standards. The mechanical durability of the LC1D95G7 is rated at 4,000,000 operations, with an electrical durability (with load) of 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

11 in stock
AZ5DE015 on Powermatic Associates

AZ5DE015

Schneider Electric

Schneider Electric - AZ5DE015

93 in stock
ZB2BE102 on Powermatic Associates

ZB2BE102

Schneider Electric

Schneider Electric ZB2BE102 is a contacts block designed for use in various automation applications. It features 1 NC (Normally Closed) auxiliary contact and is capable of enduring up to 1,000,000 operations at no load, highlighting its mechanical durability. The part is equipped with short-circuit protection, which is ensured by a 10A gG cartridge fuse. Its operating mode is spring-return (impulse/momentary), facilitating quick and responsive actions in automated systems.

46 in stock

This item can ship within 24h!

Manufacturer warranty

M9F21103 Schneider Electric

$101.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

1

Select Qty:

$101.00

$101.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare M9F21103 with other Industrial Automation Components products

Breaking Capacity

[Ics] Rated Service Break...

Standards

Product Certifications

Connections - Terminals

[Ue] Rated Operational Vo...

Magnetic Tripping Limit

Network Type

Tightening Torque

Mechanical Durability

Selected product

M9F21103
1 in stock
M9F21103
Schneider Electric

Schneider Electric M9F21103 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designe...

Breaking Capacity10 kA AIR 277 V AC UL 1077 1...

[Ics] Rated Service Breaking Capacity2.25 kA 75 % EN/IEC 60947-2 ...

StandardsEN/IEC 60947-2 GB 14048.2 UL...

Product CertificationsIEC CCC UR CSA

Connections - TerminalsTunnel type terminal top or ...

[Ue] Rated Operational Voltage240 V AC 50/60 Hz 415 V AC 5...

Magnetic Tripping Limit4 x In +/- 20 % AC 5.7 x In ...

Network TypeAC DC

Tightening Torque22.13 lbf.in (2.5 N.m) top o...

Mechanical Durability20000 cycles

M9F21116
40 in stock
M9F21116
Schneider Electric

Schneider Electric M9F21116 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designe...

Breaking Capacity10 kA AIR 277 V AC UL 1077 1...

[Ics] Rated Service Breaking Capacity-

Standards-

Product Certifications-

Connections - Terminals-

[Ue] Rated Operational Voltage-

Magnetic Tripping Limit-

Network TypeAC DC

Tightening Torque-

Mechanical Durability-

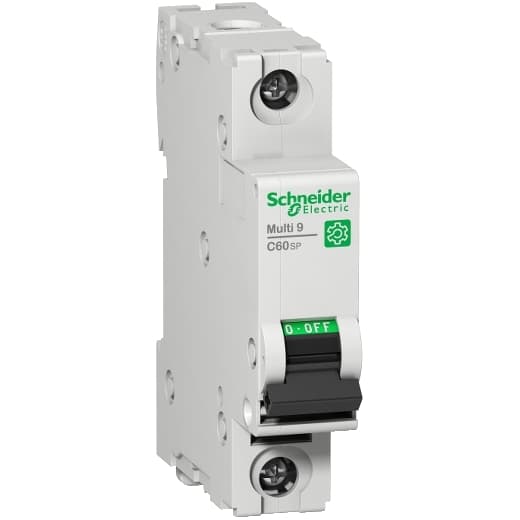

M9F21102
