Part#:EJB14030

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

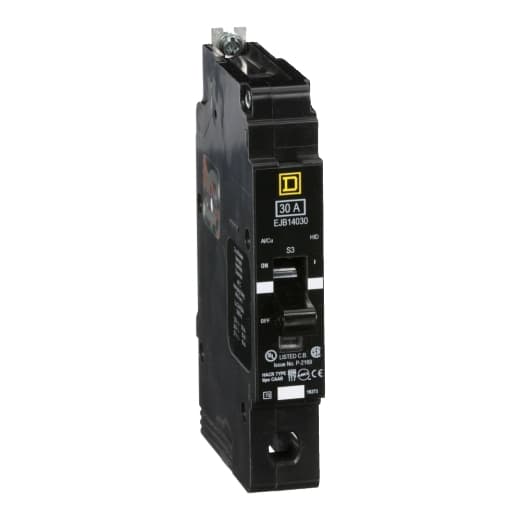

Square D by Schneider Electric EJB14030 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and an aluminium lugs connection. This MCB operates at a rated voltage of 277 V AC, with a rated current of 30A and is suitable for a single pole configuration. It accommodates a wire cross-section of 14-6AWG for one copper cable. The EJB14030 offers protection functions against short-circuit and overload conditions, serving as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code J. It has a short circuit breaking rating of 100kA at 120Vac, 65kA at 240Vac, and 65kA at 277Vac. The thermal-magnetic trip unit has a protection setting with a trip unit rating of 875A.

Product Details

  • Breaking Capacity
    65 kA 240 V AC 65 kA 277 V AC 100 kA 120 V AC 65 kA 120/240 V AC
  • Protection Type
    Short-circuit Overload
  • Circuit Breaker Application
    HID rated HACR rated
  • AWG Gauge
    AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
  • Height
    5.66 in (143.76 mm)
  • Depth
    4.05 in (102.87 mm)
  • Net Weight
    2 lb(US) (0.91 kg)
  • Width
    0.98 in (24.89 mm)
  • Tightening Torque
    30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
  • Breaking Capacity Code
    J
  • Number Of Spaces Required
    1
  • Product Destination
    NF panelboard
  • Number Of Spaces
    1
  • Trip Unit Technology
    Thermal-magnetic
  • Holding Current
    270 A
  • Mounting Mode
    Bolt-on
  • Number Of Poles
    1
  • Local Signalling
    Trip indicator
  • Electrical Connection
    Lugs aluminium
  • Product Or Component Type
    Miniature circuit-breaker
  • Module Type
    E-Frame
  • Trip Unit Rating
    875 A
  • Device Short Name
    EJB
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Line Rated Current
    30 A
  • Maximum Operating Voltage
    277 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EJB14030 on Powermatic Associates is $408.00. Order now.
