Part#:EJB14015

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

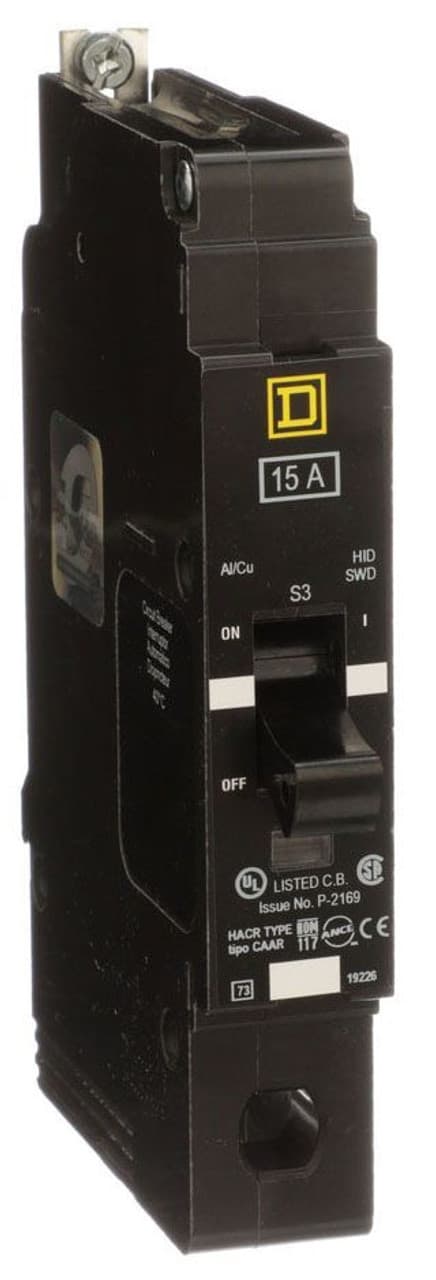

Square D by Schneider Electric EJB14015 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and is rated for 277V AC. This MCB offers short-circuit and overload protection, functioning as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code J. It supports an aluminium lugs connection and has a rated current of 15A. The EJB14015 is a single-pole device accommodating a cross-section of 14-6AWG for one copper cable. It has a short circuit breaking rating of 100kA at 120Vac, 65kA at 240Vac, and 65kA at 277Vac. The trip unit is thermal-magnetic with protection settings featuring a trip unit rating of 875A.

Product Details

  • TS PIK:
    116050004
  • Shipping Length:
    6.00 In.
  • Shipping Weight:
    1.55 lbs.
  • Shipping Height:
    1.00 In.
  • UPC:
    78590113049
  • Shipping Width:
    5.00 In.
  • Breaking Capacity
    65 kA 240 V AC 65 kA 277 V AC 100 kA 120 V AC 65 kA 120/240 V AC
  • Circuit Breaker Application
    HACR rated Switching Duty rated HID rated
  • AWG Gauge
    AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
  • Protection Type
    Overload Short-circuit
  • Width
    0.98 in (24.89 mm)
  • Height
    5.66 in (143.76 mm)
  • Depth
    4.05 in (102.87 mm)
  • Net Weight
    2 lb(US) (0.91 kg)
  • Tightening Torque
    30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
  • Breaking Capacity Code
    J
  • Number Of Spaces
    1
  • Number Of Poles
    1
  • Mounting Mode
    Bolt-on
  • Trip Unit Technology
    Thermal-magnetic
  • Product Destination
    NF panelboard
  • Number Of Spaces Required
    1
  • Holding Current
    270 A
  • Local Signalling
    Trip indicator
  • Electrical Connection
    Lugs aluminium
  • Trip Unit Rating
    875 A
  • Maximum Operating Voltage
    277 V AC
  • Line Rated Current
    15 A
  • Module Type
    E-Frame
  • Device Short Name
    EJB
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EJB14015 on Powermatic Associates is $408.00. Order now.
