Schneider Electric

Part#:BDL26110

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

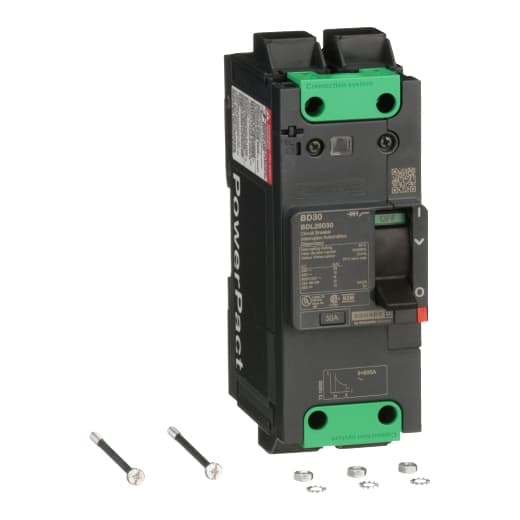

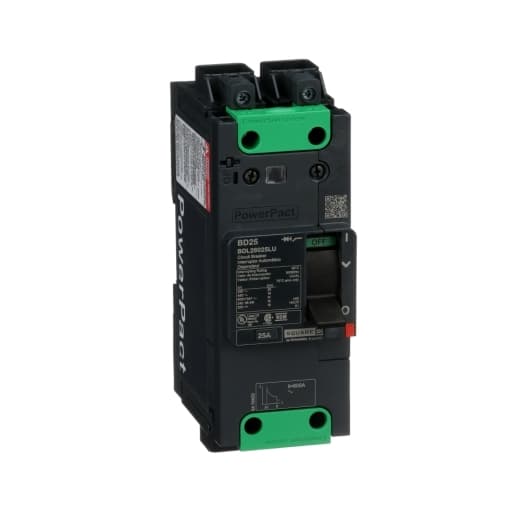

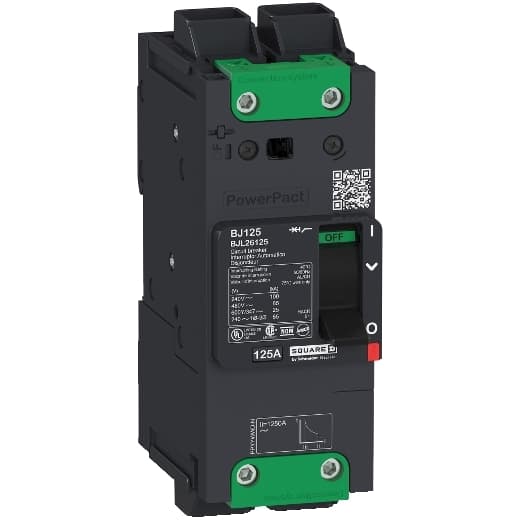

Square D by Schneider Electric BDL26110 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 125 TMD 2P 110A design for 600Y/347Vac with a 14kA short circuit breaking rating and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV, degree of protection IP40, rated current of 110A, and a rated voltage (AC) of 600Vac 600Y/347Vac. The MCCB offers mechanical durability of 20,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. It features 2 poles (2P), with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The utilisation category is A, with protection settings including over-current fixed at 110A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. It also has a rated voltage (DC) of 250Vdc, rated insulation voltage (Ui) of 800 V, and a rated operating voltage (Ue) of 525 V. The protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 110 AT. Its electrical durability with load is 10,000 operations at 440Vac; In, and it has a frame current rating of 125 AF. The operating mode is toggle (manual), and the trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480/277 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600Y/347 V AC 50/60 Hz UL 489 10 kA 250 V DC UL 489
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Mounting Mode
    Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
  • Net Weight
    1.70 lb(US) (0.769 kg)
  • Height
    5.39 in (137 mm)
  • Depth
    3.15 in (80 mm)
  • Width
    2.13 in (54 mm)
  • Quantity Per Set
    Set of 1
  • 9 Mm Pitches
    6
  • Color
    Grey (RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Connection Pitch
    1.06 in (27 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Continuous Current Rating
    80 %
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Utilisation Category
    Category A
  • Suitability For Isolation
    Yes IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Line Rated Current
    110 A
  • Number Of Poles
    2P
  • Breaking Capacity Code
    D
  • Control Type
    Toggle
  • Device Short Name
    BD 110
  • Device Application
    Distribution
  • Product Or Component Type
    Circuit breaker
  • Product Name
    PowerPact B
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL26110 on Powermatic Associates is $1,195.00. Order now.

BDL26110 Related Documents

Catalog-1631034666672.pdfProduct Datasheet-1631034666655.pdfInstruction Sheet-1631034666653.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

12 in stock
M9F42235 on Powermatic Associates

M9F42235

Schneider Electric

Schneider Electric M9F42235 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed to comply with UL489 standards. This 2-pole MCB has a rated current of 35A and features a rated insulation voltage (Ui) of 500V. It is suitable for use with a rated voltage (DC) of 60Vdc and a rated impulse voltage (Uimp) of 6kV. The M9F42235 offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. It supports a rated voltage (AC) of 240V phase-to-neutral and 415V phase-to-phase, with both poles protected. The tripping curve for this MCB is type C.

1 in stock
BDF36015 on Powermatic Associates

BDF36015

Schneider Electric

Square D by Schneider Electric BDF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 15A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has 3 poles (3P) and falls under utilisation category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. Its protection settings include over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It offers thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 15 AT. The electrical durability with load is 10,000 operations at 440Vac. It has a frame current rating of 100 AF and operates via a toggle (manual). The short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

4 in stock
BJF36100 on Powermatic Associates

BJF36100

Schneider Electric

Square D by Schneider Electric BJF36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 100A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, and it offers a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has 3 poles (3P) and falls under the utilization category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. Its protection settings include over-current fixed at 100A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated voltage for DC operations is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 100 AT. The electrical durability with load is 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, offering 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac for UL489 standards, and 50kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) with no display.

1 in stock
RSLZ5 on Powermatic Associates

RSLZ5

Schneider Electric

Schneider Electric RSLZ5 is a marking automation part within the RSL sub-range designed for EtherCAT communication protocol. It features 2 sheets of 64 clip-in legends for marking purposes. The part operates with a current consumption of 100mA when no load is present. It is equipped with protection functions including short-circuit, bearing lock, magnetic field proof, and reverse polarity safeguards. The RSLZ5 achieves a maximum rotational speed of 6000rpm and has a moment of inertia rated at 4 x 10^-6 kg.m^2. It offers a resolution of 13-bit for single-turn and 12-bit for multi-turn operations. Additionally, it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.

1 in stock
1200-00225 on Powermatic Associates

1200-00225

Schneider Electric

LC1D326BD Square D Contactor

5 in stock

Manufacturer warranty

BDL26110 Schneider Electric

$1,195.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,195.00

$1,195.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare BDL26110 with other Industrial Automation Components products

Breaking Capacity

[Ics] Rated Service Break...

Electrical Connection

Tightening Torque

Number Of Slots

AWG Gauge

Mounting Mode

Net Weight

Height

Depth

Selected product

BDL26110
Backordered
BDL26110
Schneider Electric

Square D by Schneider Electric BDL26110 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 H...

Electrical ConnectionEverlink lug line Everlink l...

Tightening Torque44.25 lbf.in (5 N.m) 0.00…0....

Number Of Slots1 auxiliary switch OF plug-i...

AWG GaugeAWG 6...AWG 2/0 fine strande...

Mounting ModeClip-on 35 x 15 mm symmetric...

Net Weight1.70 lb(US) (0.769 kg)

Height5.39 in (137 mm)

Depth3.15 in (80 mm)

BDL36020
16 in stock
BDL36020
Schneider Electric

Square D by Schneider Electric BDL36020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 H...

Electrical Connection-

Tightening Torque-

Number Of Slots-

AWG Gauge-

Mounting Mode-

Net Weight-

Height-

Depth-

BDF36015
4 in stock
BDF36015
Schneider Electric

Square D by Schneider Electric BDF36015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz...

[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 H...

Electrical Connection-

Tightening Torque-

Number Of Slots-

AWG Gauge-

Mounting Mode-

Net Weight-

Height-

Depth-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

MDI4MRQ34B2-EQ on Powermatic Associates

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

BDL26015 on Powermatic Associates

BDL26015

Verified stock: 0

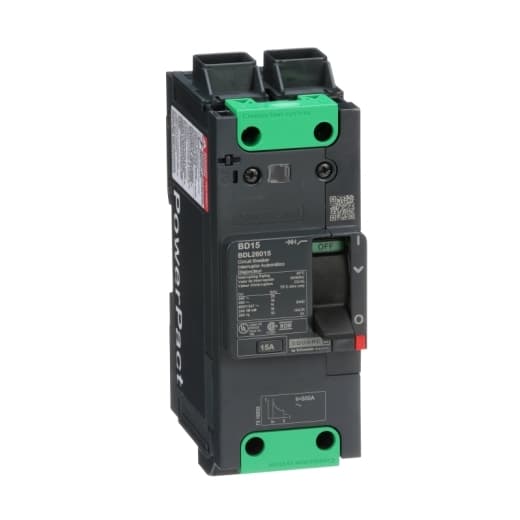

Square D by Schneider Electric BDL26015 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 15A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 15A, with a rated voltage (AC) of 600Vac 600Y/347Vac. This MCCB has a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. It features 2 poles (2P), with dimensions of 137 mm in height, 80 mm in depth, and 54 mm in width. The utilisation category is A. Protection settings include over-current fixed at 15A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions cover thermal protection (Overload) and magnetic protection (Short-circuit), with a trip current rating of 15 AT. Electrical durability with load is rated at 10,000 operations at 440Vac; In. The frame current rating is 100 AF, with a toggle (manual) operating mode. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Y/347Vac, and 10kA at 250Vdc, all according to UL489 standards. The trip unit type is Thermal-Magnetic (fixed) with no display.
