ATS48D88Y Schneider Electric Electronic Components
Part#:ATS48D88Y
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

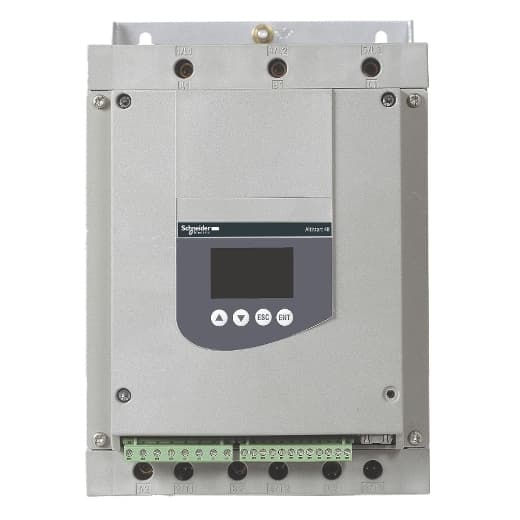

Schneider Electric ATS48D88Y is a soft starter from the Altistart 48 series, designed with a 3-controlled phases Torque Control System (TCS) and an optional FIPIO protocol for asynchronous motor bypass. It operates on a supply voltage of 177-759Vac (208Vac / 240Vac / 480Vac / 690Vac nom.; 50/60Hz) and has dimensions of H290mm x W190mm x D235mm. The connection type is screw connections with a degree of protection rated at IP00. It has a rated current of 88A for standard applications, 75A for severe applications, and a factory setting current of 77A. This soft starter is suitable for wall mounting and supports communication protocols such as Modbus, Modbus TCP, DeviceNet, and PROFIBUS DP, over a 3-phase network. It operates efficiently within an ambient air temperature range of +14...+104°F / -10...+40 °C without derating and can handle up to +104...+140°F / +40...+60 °C with current derating of 2.2% per °C. The ATS48D88Y features 1 analog output (0-20mA / 4-20mA), multiple digital inputs and outputs for comprehensive control, and is designed for ambient air temperatures for storage between -13...158°F / -25...70 °C. Its rated active power varies by application and voltage, supporting a wide range of industrial needs, with power dissipation/losses of 2537 W for standard applications and 2073 W for severe applications.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the ATS48D88Y Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Maximum Horse Power Rating 20 hp 208 V for severe applications 25 hp 208 V for standard applications 25 hp 230 V for severe applications 30 hp 230 V for standard applications 50 hp 460 V for severe applications 60 hp 460 V for standard applications 60
- Motor Power Kw 22 kW 230 V for standard applications 37 kW 400 V for severe applications 37 kW 440 V for severe applications 45 kW 400 V for standard applications 45 kW 440 V for standard applications 45 kW 500 V for severe applications 45
- Discrete Output Type LO1) logic output 0 V common configurable LO2) logic output 0 V common configurable R1) relay outputs fault relay NO R2) relay outputs end of starting relay NO R3) relay outputs motor powered NO
- Motor Power Range AC-3 15…25 kW 200…240 V 3 phase 30…50 kW 380…440 V 3 phase 55…100 kW 480…500 V 3 phase 30…50 kW 480…500 V 3 phase
- Maximum Switching Current Logic output 0.2 A 30 V DC Relay outputs 1.8 A 230 V AC inductive, cos phi = 0.5 20 ms Relay outputs 1.8 A 30 V DC inductive, cos phi = 0.5 20 ms
- Protection Type Phase failure line Thermal protection motor Thermal protection starter
- Discrete Input Type PTC, 750 Ohm 77 °F (25 °C) Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
- Icl Nominal Current 88 A connection in the motor supply line for severe applications 88 A connection in the motor supply line for standard applications
- Power Dissipation In W 245 W for standard applications 290 W for standard applications
- Net Weight 18.30 lb(US) (8.3 kg)
- Width 7.48 in (190 mm)
- Depth 9.25 in (235 mm)
- Height 11.42 in (290 mm)
- Operating Position Vertical +/- 10 degree
- Transmission Rate 4800, 9600 or 19200 bps
- Communication Data Link Serial
- Output Absolute Accuracy Precision +/- 5 %
- Motor Starter Type Soft starter
- Marking CE
- Max Nodes Number 31
- Physical Interface RS485 multidrop
- Connector Type 1 RJ45
- Analogue Output Type Current output AO 0-20 mA or 4-20 mA 500 Ohm
- Discrete Input Logic Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA
- Starting Current 0.4...1.3 Icl adjustable
- Communication Port Protocol Modbus
- Discrete Input Voltage 24 V <= 30 V
- Minimum Switching Current 10 mA 6 V DC relay outputs
- Discrete Input Number 5
- Assembly Style With heat sink
- Power Supply Frequency 50...60 Hz - 5...5 %
- Device Connection In the motor supply line
- Discrete Output Number 2
- Type Of Start Start with torque control (current limited to 5 In)
- Power Supply Frequency Limits 47.5...63 Hz
- Function Available External bypass (optional)
- Utilisation Category AC-53A
- Power Supply Voltage 208...690 V - 15...10 %
- Product Specific Application Heavy duty industry and pumps
- Device Short Name ATS48
- Product Destination Asynchronous motors
- Product Or Component Type Soft starter
- Range Of Product Altistart 48
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents ATS48D88Y Specs
