Part#:8536SBG2V02H308S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

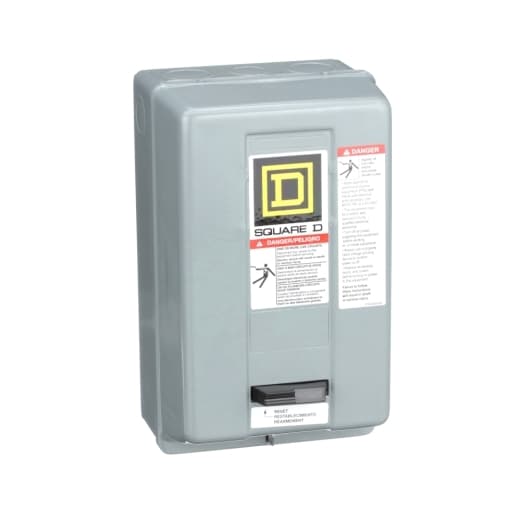

NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, NEMA 1

Product Details

  • Rated Current
    18 A
  • Auxiliary Contacts
    Without
  • Width
    6.00 in (152.40 mm)
  • NEMA Size
    0
  • Control Circuit Type
    Separate control circuit
  • Starter Type
    Non reversing
  • Product Range
    S
  • Maximum Voltage Rating
    600 V AC
  • Pilot Light
    Without pilot light
  • Number Of Poles
    3P
  • Depth
    5.56 in (141.22 mm)
  • Type Of Overload
    Solid state Motor Logic class 10/20
  • Control Units
    No control units
  • Product Type
    Motor starter
  • Terminal Type
    Screw clamp terminals
  • Phase
    3 phase
  • Height
    10.00 in (254.00 mm)
  • Coil Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Horsepower Rating
    3 HP 200 V AC 3 HP 230 V AC 5 HP 460 V AC 5 HP 575 V AC
  • SCCR
    Circuit-breaker 70 A maximum: 100 kA at 480 V AC Fuse J 60 A maximum: 100 kA at 600 V AC Fuse T 60 A maximum: 100 kA at 600 V AC Fuse RK1 60 A maximum: 100 kA at 600 V AC Fuse RK5 60 A maximum: 100 kA at 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
